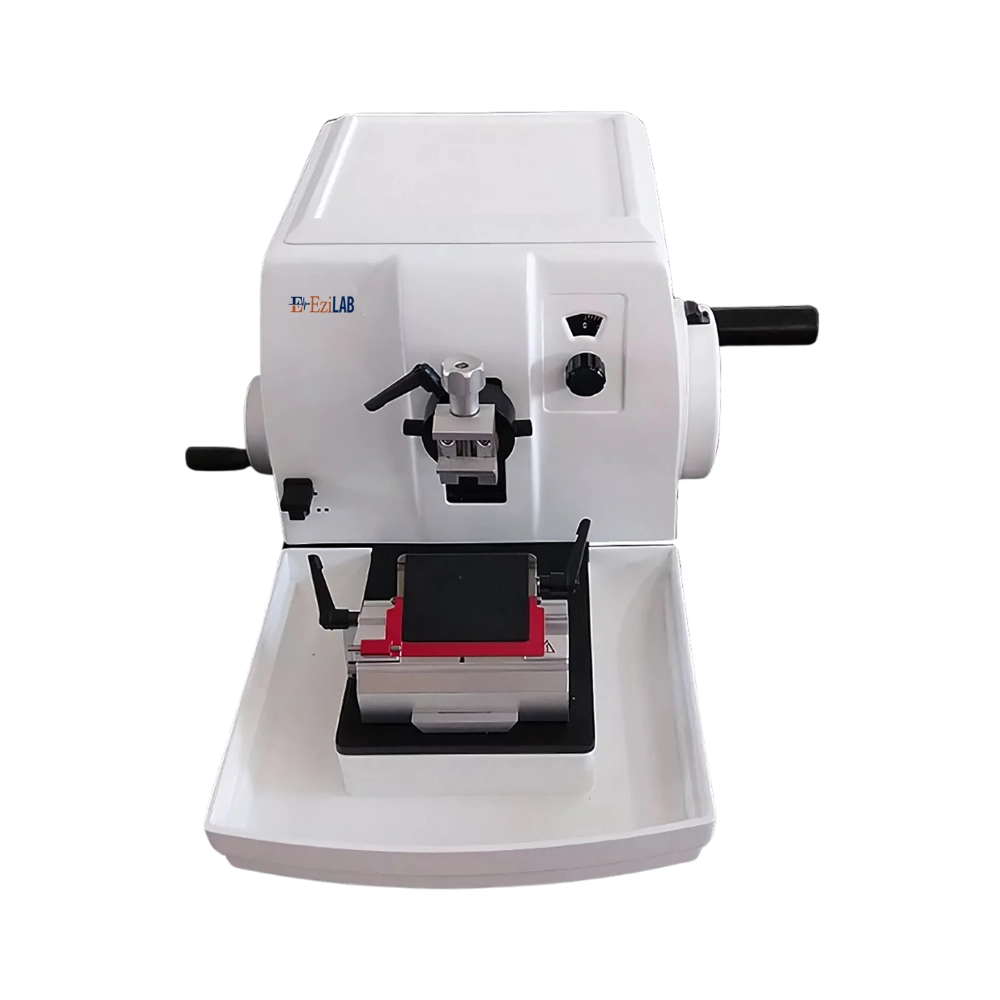

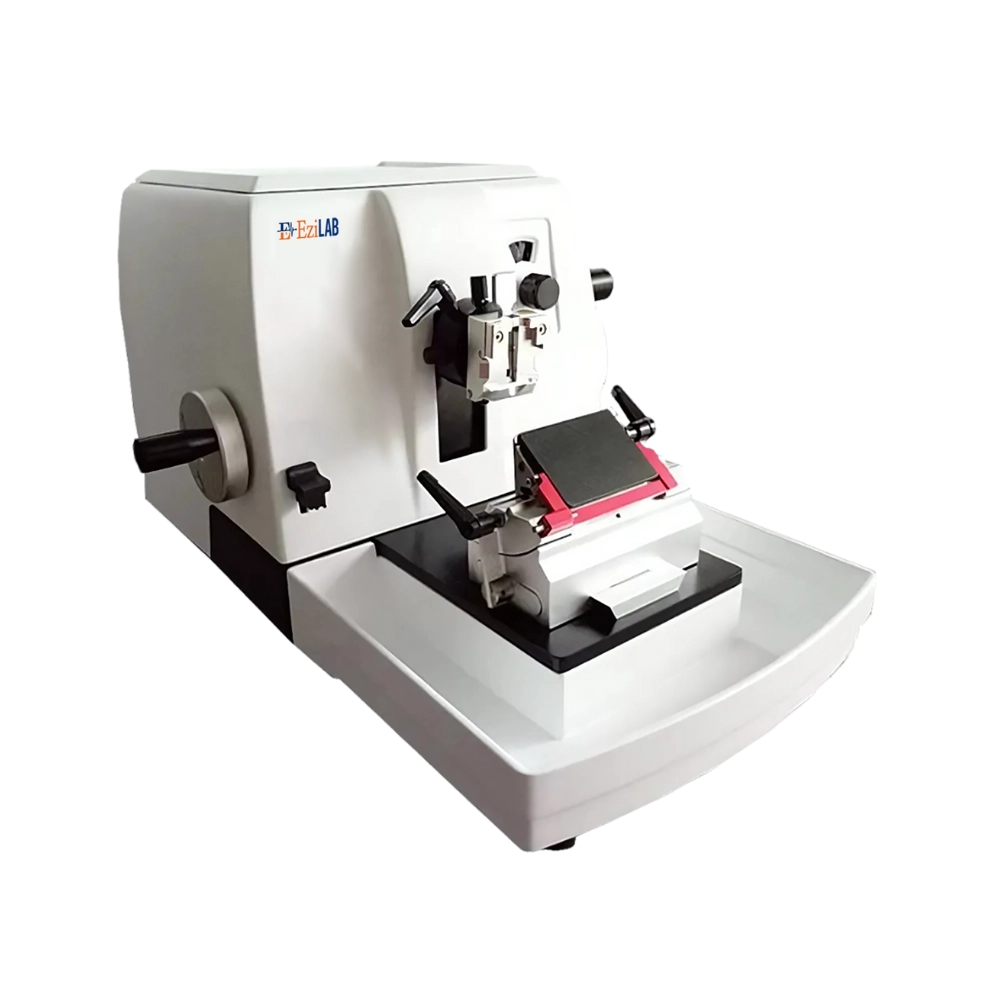

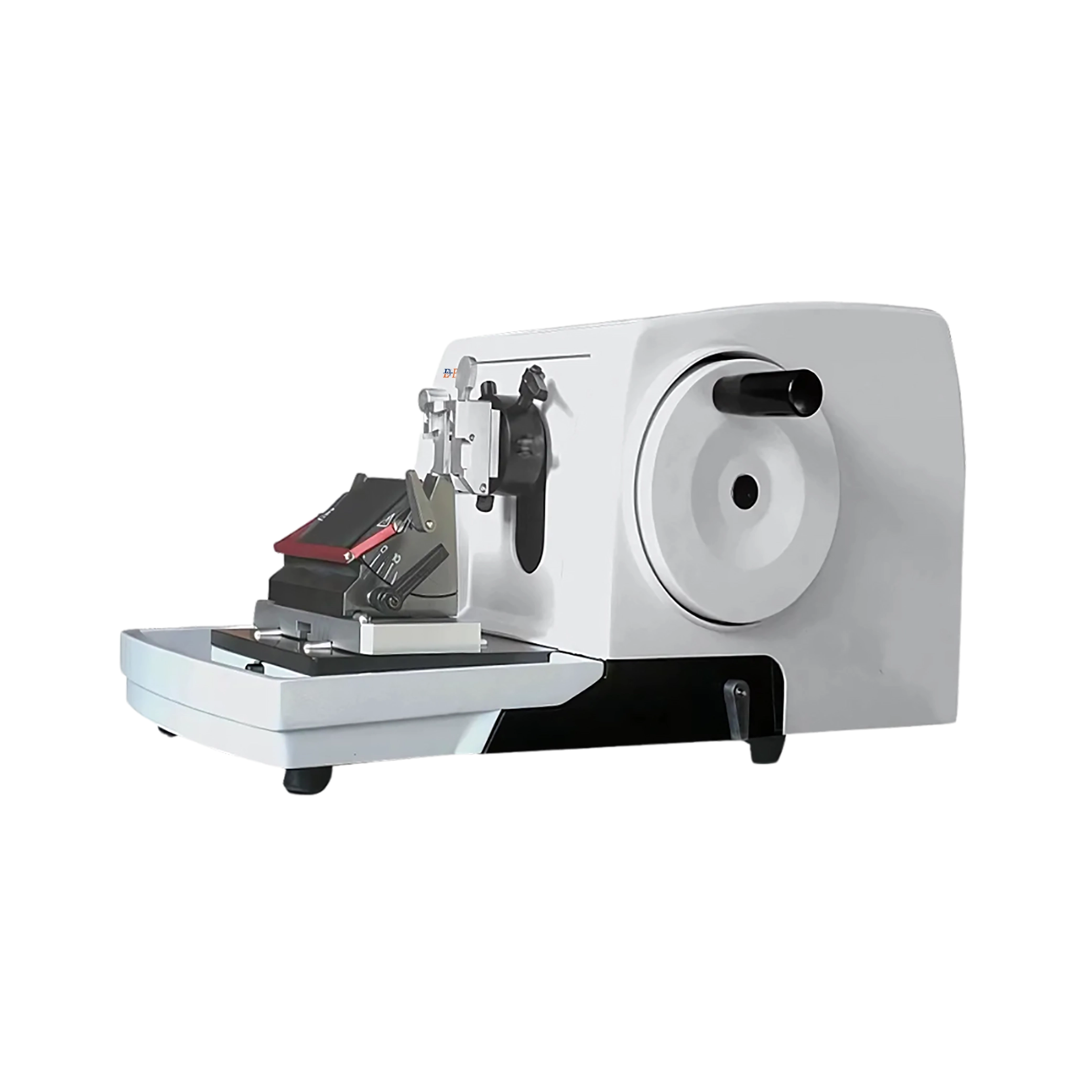

EziLab Manual Microtome EZL-MM103 is designed for routine histology sectioning across clinical pathology, histology research, medical institutions, and biological laboratory applications. Specimen retraction function enhances cutting accuracy, while sectioning thickness spans up to 60 um with selectable increments for flexible histology microtome use. Stable specimen movement allows smooth slicing, and mechanical precision maintains uniform sections throughout extended cutting sessions. Bench-friendly size suits laboratory workflows without requiring dedicated installation space. EziLab's Lab Equipment and microtomes present the full histology microtome and manual sectioning range for clinical and research pathology needs.
| Specimen Retarction | 60 µm (on/off) |
|---|---|
| Sectioning Thcikness Range (0 to 60 µm) | { |
| Trimming Thickness Range | 0 to 60 µm |
| Minimum Sectioning Thcikness | 1 µm |
| Maximum Specimen Size | 70×70 mm |
| Precision | ±5% |
| Specimen Horizontal Stroke | 28 mm |
| Specimen Vertical Stroke | 70 mm |
| Specimen Orientation | XY- 8° |
| External Dimension (W×D×H) | 590×500×330 mm |
| Package Dimension (W×D×H) | 690×590×500 mm |
| Gross Weight | 54 Kg |
Smooth running and conveniently positioned to reduce arm fatigue
Provides optimal tactile response
Specimen trimming feature speeds up productivity
Advanced high-precision micro-drive feed system enables stable and high-precision sectioning
Provides work flow flexibility
The precise positioning system not only easy to use, but also provides accurate X and Y axis adjustment
Fast switching between paraffin block clamp and cassette clamp
Imported guide rails for cross-rollers and high-precision screw motion mechanisms
Large-volume removable waste tray, easy to use on the top of the housing
Red bar on the blade holder covers the whole length of blade to protect the user and enables easy changing of the blade
Cassette clamp can be locked at any position along each of the three axes
Protects user from accidental exposure to the blade
Large and comfortably shaped for efficient removal of paraffin waste
Power base minimizes vibration during sectioning
Increases contrast between specimens and paraffin to show where the tissue is, to prevent cutting away a small biopsy
Accurate alignment of the block face to the blade, which is crucial for recuts
Manual microtomes are extensively used in Clinical fields, Research laboratories, Industrial laboratories, Pathology labs, Medical Institutions, Histology and Biology labs and many Medical science applications.
