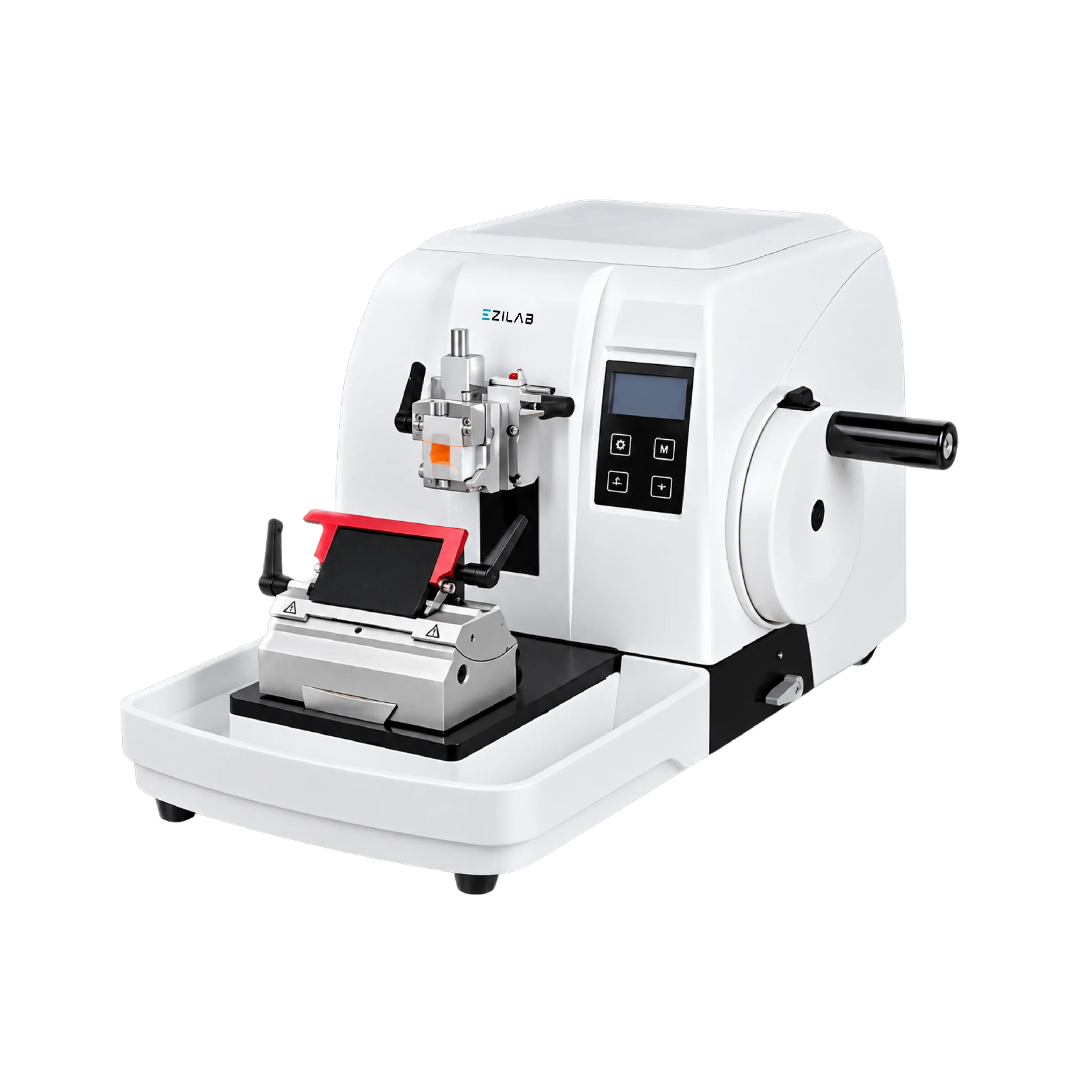

EziLab supplies the Semi-Automatic Microtome EZL-SM202 for histopathology laboratories, clinical diagnostic pathology centers, research tissue processing facilities, academic teaching labs, and biomedical research programs that need fine tissue sectioning. This rotary microtome delivers a 0.25 to 100 um section thickness range and an OLED display, supporting paraffin tissue sectioning, frozen section preparation, histology slide production, and pathology sample processing across clinical and research programs. The OLED display provides clear section thickness, specimen retraction, and cutting mode readouts, supporting fast setup changes and consistent thin sectioning across laboratory settings. The 0.25 to 100 um range suits both fine research sectioning and routine diagnostic sample prep across pathology and academic programs, positioned as the standard semi-automatic configuration in this catalog, distinct from the fully automatic microtome and the manual units elsewhere that trade motorized fine control for either full automation or complete hands-on operation. Histopathology labs balancing motorized coarse feed with manual fine sectioning control get the standard configuration for this microtome category here. See the Rotary Microtome and Semi-Automatic Microtome ranges for fine tissue sectioning needs across USA histopathology laboratory settings.
| Mode | Semi-automatic without intelligent sensing |
|---|---|
| Refraction Range |
0 – 50 µm 5 – 50 µm |
| Specimen Horizontal Stroke | 28 mm |
| Specimen Vertical Stroke | 70 mm |
| Specimen Orientation | XY – 8°C, rotation ±90°C |
| Minimum Sectioning Thcikness | 0.25 µm |
| Maximum Specimen Size | 70×70 mm |
| Whole Layer Clearance Distance | 10 – 6000 µm (10, 12, 15, 20……6000, after 15 µm the increment is 5 µm) |
| Sectioning Thcikness Range (0.25 to 100 µm) | { |
| Trimming Thickness Range (1 to 900 µm) | { |
| Feed Speed | 1500 µm/s, 3500 µm/s |
| Precision | ±5% |
| Display | OLED Display |
| Power Consumption | 100 W |
| External Dimension (W×D×H) | 575×420×330 mm |
| Package Dimension (W×D×H) | 670×550×480 mm |
| Gross Weight | 45 kg |
Smooth running hand wheel
Provides optimal tactile response
Specimen trimming feature speeds up productivity
Automatic sectioning speed is adjustable by gentle button
Fast switching between paraffin block clamp and cassette clamp
Auto slicing control ensures fast trimming and slicing switching
Safety and emergency braking systems
3 mode control system: conventional mode, intelligent sensing mode and whole layer cutting mode
Lateral displacement of blade holder base enables better sectioning
Provides work flow flexibility
The precise positioning system not only easy to use, but also provides accurate X and Y axis adjustment
Imported guide rails for cross-rollers and high-precision screw motion mechanisms
Large-volume removable waste tray, on the top of the housing
Red bar on the blade holder covers the whole length of blade to protect the user and enables easy changing of the blade
Safety and emergency breaking systems
Blade holder can be laterally moved without direct contact, enabling use of the entire length of blade
Manual microtomes are extensively used in Clinical fields, Research laboratories, Industrial laboratories, Pathology labs, Medical Institutions, Histology and Biology labs and many Medical science applications.
