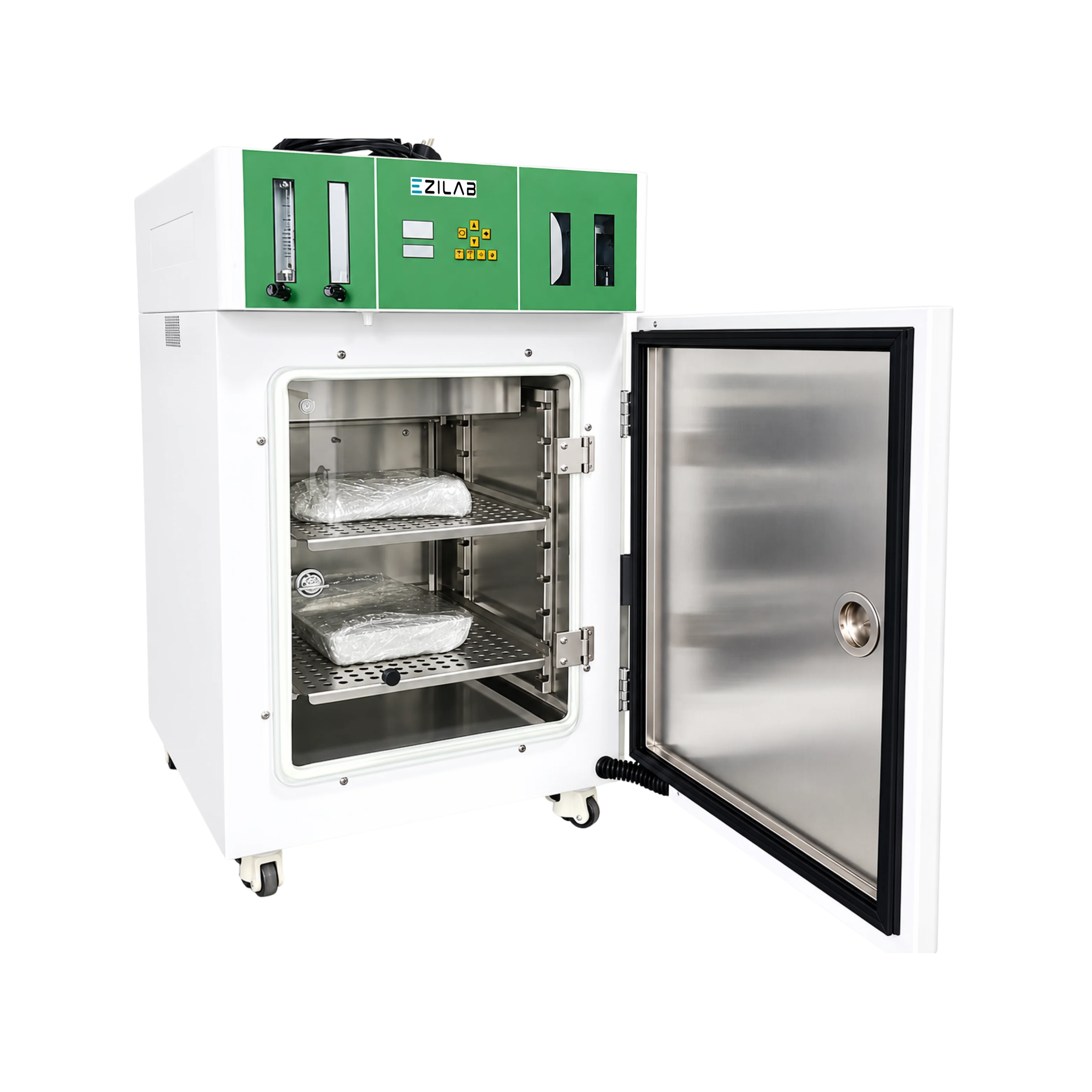

EziLab offers the Water Jacket CO2 Incubator EZL-WJ82, a large CO2 incubator with a 160 L chamber that doubles the 80 L model's capacity for scaled-up culture work. A water jacket surrounds the chamber, buffering temperature so it recovers slowly but steadily after door openings and resists room swings during long runs. Temperature runs from RT +3°C to 60°C with ≤ ±0.2°C stability and ≤ ±0.3°C uniformity, while CO2 sets from 0 to 20% through a direct-reading flow meter. A forced convection fan and air duct spread conditions evenly through the polished stainless steel interior, and the fan stops when the door opens to limit gas loss. Natural vaporization keeps humidity high for media, dual probes and a PID controller hold setpoints on a large LCD, and UV-sterilized air filtration lowers contamination risk. Alarms cover overheating, over-temperature, low water, high CO2, and slow CO2 recovery. Research institutes, biotech companies, pharmaceutical labs, hospitals, and agricultural and chemical research centers use it to consolidate several smaller incubators into one unit. Typical applications include tissue and cell culture, bacterial culture, genetic engineering, immunology studies, and pharmacology testing. See the Water Jacket CO2 Incubator and Water Jacket CO2 Incubator EZL-WJ82 pages for full specifications.
| Chamber Volume | 160 L |
|---|---|
| Temperature Range | RT +3 to 60°C |
| Temperature Stability | ≤ ±0.2°C |
| Temperature Uniformity | ≤ ±0.3°C |
| Timing Range | 2 to 999 Minutes or Without Timing |
| CO2 Range | 0 to 20% |
| Humidity Method | Natural Vaporization |
| Power Rating | 900 W |
| Chamber Dimension (W×D×H) | 50×50×65 cm |
| Exterior Dimension (W×D×H) | 69×69×103 cm |
| Package Dimension (W×D×H) | 70×78×118 cm |
| Net Weight | 75 kg |
| Gross Weight | 110 kg |
There are water jacket and air jacket structures available
Polished stainless-steel chamber with air duct
Forced convection is created by a fan
When the door is opened, the fan is automatically turned off to prevent pollution
Large LCD screen and PID controller design
A PID microprocessor is used to control temperature stability and air flow
The air jacket is outfitted with two probes for controlling the temperature of the door and the main body
The LCD indicator switch is flexible
Alarm function for overheating, over-temperature, lack of water, over concentration, slow concentration rising, ensuring the equipment's safe operation
Sterile air filtration by UV light system
Natural evaporation is used to humidify the air
The CO2 gas and air ratio can be arbitrarily selected based on the needs, direct reading type flow meter, accurate and simple operation
CO2 incubator is a high-quality instrument for cell, tissue and bacteria cultivation. It's used in a variety of areas, including microbiology, medicine, agriculture, chemistry, pharmacology, tissue and cell culture, bacteria culture, genetic engineering, immunology and others.
