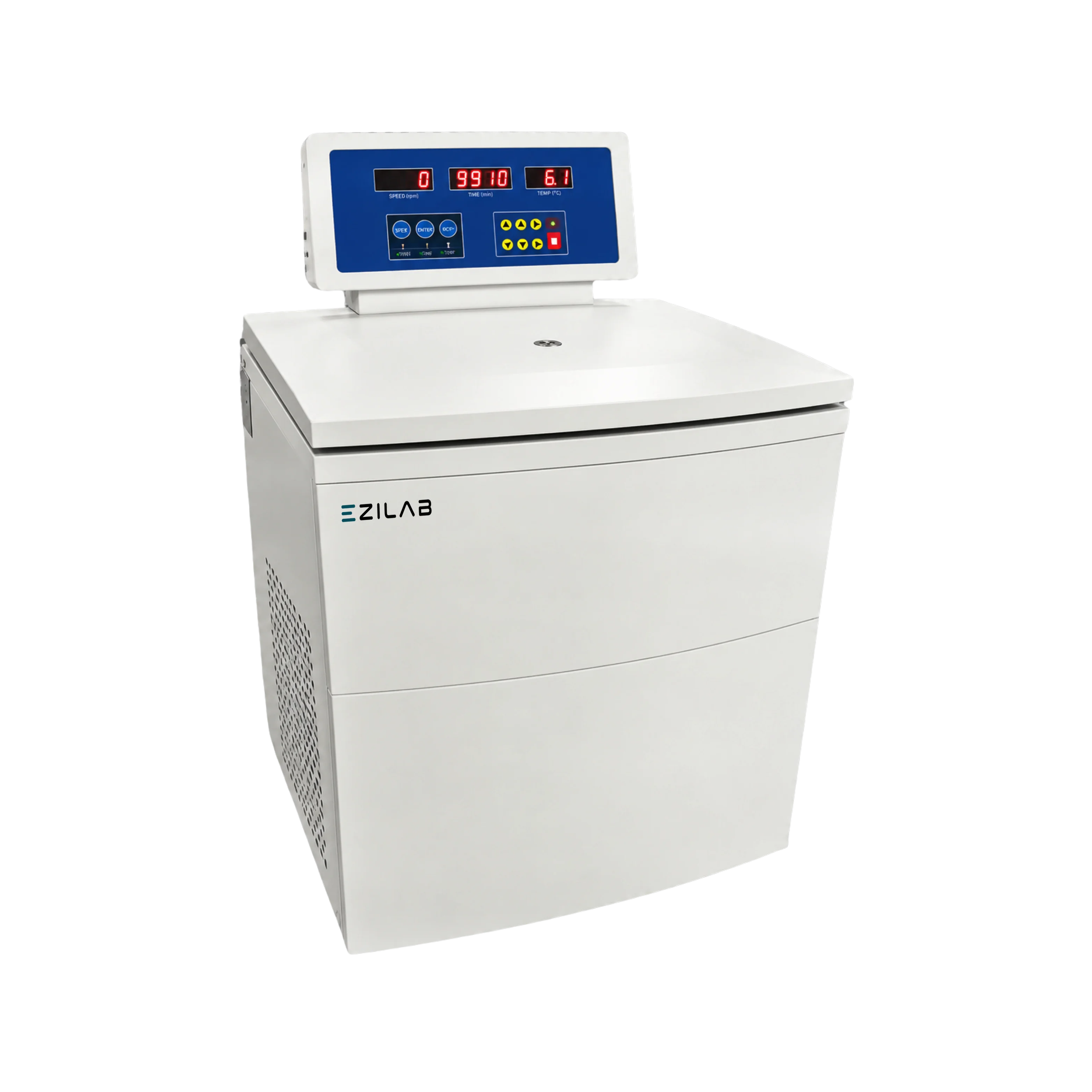

EziLab offers the High Speed Refrigerated Centrifuge EZL-HRC114, a floor-standing DNA centrifuge that spins twenty-four 1.5 mL tubes to 22,000 rpm and 53,028 g, or four 1000 mL bottles to 8,000 rpm and 12,000 g, while the chamber holds any set point from -20 °C to 40 °C. Ten fixed angle rotors cover 1.5 to 1000 mL formats, an adapter fits 50 mL tubes into the 250 mL rotor, the timer runs 1 to 99 minutes 59 seconds, and the lid locks until the rotor stops. Noise stays at or below 58 dB(A), draw is 5 kW, and the cabinet measures 860 by 730 by 1200 mm at 250 kg. Choose it over the 31,000 g siblings when protocols call for pelleting near 50,000 g without the 80,000 g top unit. Molecular biology labs pellet bacterial lysates in it, pharmaceutical plants spin down fermentation broth, clinical research units separate subcellular fractions, and biotech firms harvest cells from liter-scale cultures. Daily runs include plasmid preps, membrane fraction isolation, protein precipitation, and virus concentration. Pelleting time follows each rotor’s k-factor, not rpm alone; ask for it per rotor. Force tiers can be compared in Laboratory Centrifuge and High Speed Refrigerated Centrifuge.
| Maximum Speed | 22000rpm |
|---|---|
| Maximum RCF | 53028×g |
| Maximum Capacity | 4×1000 ml |
| Timer Range | 1 to 99 min 59 s |
| Noise Level | Less than equal to 58 dB(A) |
| Power | 5KW |
| Dimensions (W×D×H) | 860×730×1200 mm |
| Net Weight | 250 kg |
High-speed performance
Wide temperature range
Stable performance
Durable construction
User-friendly interface
Secure lid locking
| • | Biotech firms pellet bacterial lysate and harvest cells from liter-scale cultures in the 4 × 1000 mL rotor. |
| • | Pharmaceutical industries clear fermentation broth across the ten fixed-angle rotors, from 1.5 mL tubes up to 1000 mL bottles. |
| • | Clinical research labs separate subcellular fractions and isolate membrane fractions at chamber temperatures from -20 °C to 40 °C. |
| • | Plasmid preps and protein precipitation run in the 24 × 1.5 mL rotor at up to 22,000 rpm. |
| • | Virus concentration runs at 58 dB(A) or lower, with the lid locked until the rotor stops. |
Rotor Type | Capacity (ml) | MaximumSpeed (r/min) | Maximum RCF (×g) |
Fixed Angle Rotor 01 | 24 × 1.5 ml | 22000r/min | 53028xg |
Fixed Angle Rotor 02 | 16 × 10 ml | 21000r/min | 52300xg |
Fixed Angle Rotor 03 | 12 × 15 ml | 18000r/min | 36220xg |
Fixed Angle Rotor 04 | 6 × 50 ml | 20000r/min | 43000xg |
Fixed Angle Rotor 05 | 6 × 85 ml | 15000r/min | 25700xg |
Fixed Angle Rotor 06 | 4 × 250 ml | 14000r/min | 30200xg |
Fixed Angle Rotor 07 | 6 × 250 ml | 12000r/min | 22500xg |
Fixed Angle Rotor 08 | 8 × 100 ml | 14000r/min | 26952xg |
Fixed Angle Rotor 09 | 6 × 500 ml | 10000r/min | 17800xg |
Fixed Angle Rotor 10 | 4 × 1000 ml | 8000r/min | 12000xg |
Adapter Type | Rotor name | capacity | Max. speed | Max. RCF |
Adapter 01 | Fixed Angle Rotor 06 | 6 × 50 ml | 12000rpm | 22500 × g |
The High Speed Refrigerated Centrifuge EZL-HRC114 is designed to manage large sample volumes efficiently, making it ideal for laboratories with high-throughput demands. Its ability to handle continuous workloads while maintaining reliable performance allows for smooth daily operations. The user-friendly interface and programmable settings minimize setup time and support fast, repeatable processes. It ensures consistent results across various applications, helping labs meet their productivity goals without compromising on accuracy or sample integrity.
Ezilab’s High Speed Refrigerated Centrifuge EZL-HRC114 features an intuitive touchscreen interface and clearly marked controls, making it accessible for both experienced professionals and new technicians. The built-in memory functions allow users to save and recall commonly used programs, simplifying routine workflows. Real-time parameter adjustment adds to its ease of use during active runs. It reduces training time and supports consistent operation across diverse teams.
The High Speed Refrigerated Centrifuge EZL-HRC114 is equipped with multiple safety mechanisms to ensure secure operation. These include a secure lid locking system, automatic imbalance detection, and safe braking to prevent sudden stops. The design also reduces the risk of aerosol generation, which is crucial when working with hazardous samples. It prioritizes both user protection and sample preservation, meeting the safety standards expected in modern laboratories.
Ezilab’s High Speed Refrigerated Centrifuge EZL-HRC114 streamlines workflows with features like real-time control, programmable settings, and quick run setup. It reduces the time spent on manual adjustments and repetitive configurations. High-speed performance, combined with stable operation, helps maximize lab output.
Our High Speed Refrigerated Centrifuge EZL-HRC114 is designed to maintain precise temperature control throughout centrifugation, making it suitable for temperature-sensitive applications. This helps prevent sample degradation or thermal shifts during long runs. Whether you're working with proteins, blood samples, or pharmaceutical materials, the consistent cooling environment protects sample integrity. The advanced refrigeration system makes it a dependable choice for applications where temperature stability is essential.
The High Speed Refrigerated Centrifuge EZL-HRC114 is built for durability and stable operation, even under continuous, high-demand use. Intelligent system monitoring helps prevent overheating or strain during long runs. The centrifuge delivers reliable performance across shifts without compromising accuracy or sample protection. It is ideal for labs requiring consistent results and robust functionality during extended operation hours.
