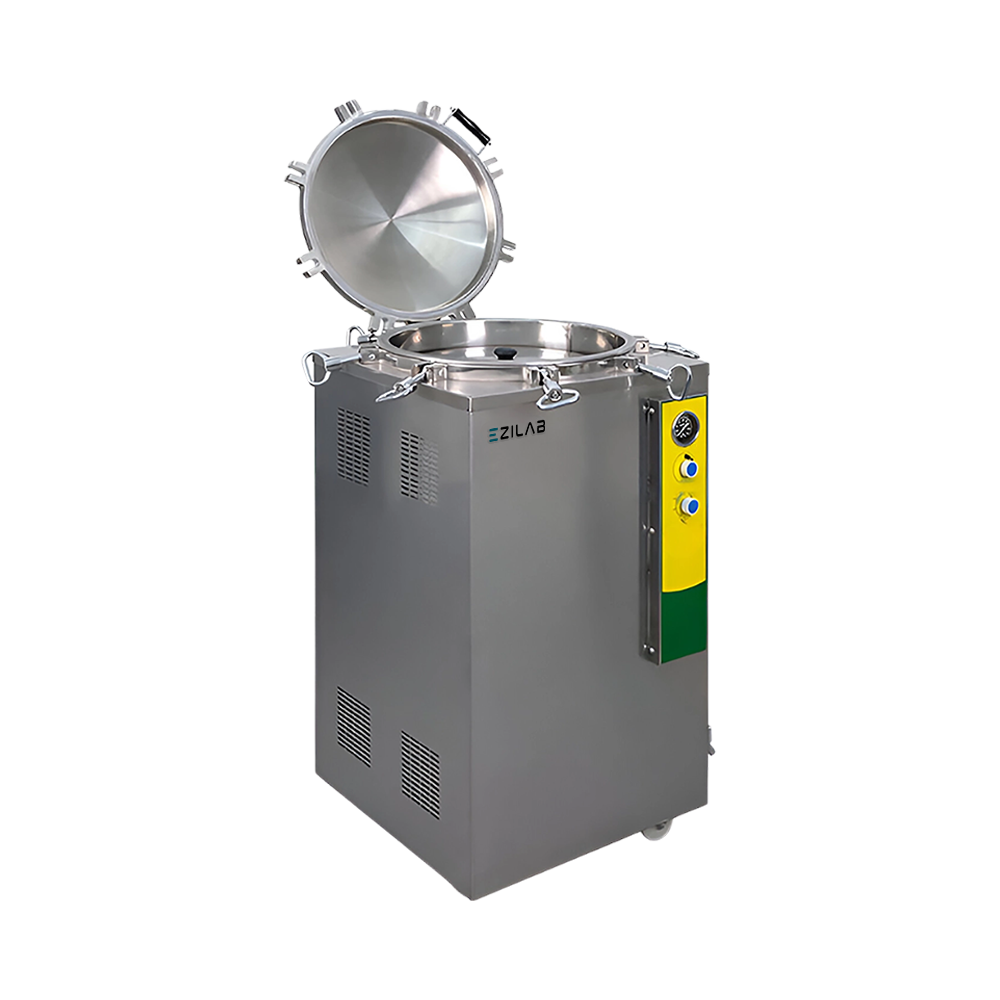

Vertical Pressure Steam Sterilizer EZL-PS98 is a top loading advanced sterilizer with fast cooling, optional drying, and waste treatment options for a variety of applications. The 100-liter vertical sterilizer has a temperature range of 105° top 134°C and a working pressure of 0.22MPa. It is equipped with two stainless steel baskets and an indicator to indicate the working parameters of sterilization process. The chamber is constructed with highly corrosion resistant stainless steel material, ensuring a long service life.

Chamber Volume 100 L
Working Pressure 0.22MPa
Maximum Temperature Range 134°C
Working Temperature 105° - 134°C
Maximum Working Pressure 0.23MPa
Heat Average ≤ ±1°C
Timer 0 – 60 min
Power 3×1.5 KW
Power Supply AC 2220V, 50 Hz
Chamber Dimension (ɸ×D) 400×600 mm
Overall Dimension (L×W×H) 590×590×1080 mm
Packing Dimension (L×W×H) 680×680×1220 mm
Net Weight 85 Kg
Gross Weight 96 Kg
  • Completely stainless steel structure
  • Hand wheel type of quick open door structure
  • Pressure safety lock
  • LED indicators indicate the working state
  • Intuitive operation and higher working comfort
  • Over-temperature and over-pressure auto protection
  • Double scale indication pressure gauge
  • Self-inflating type seal
  • Safe protection during water lack
  • Automatic shut off with an audible sound after sterilization process
  • Easy to operate, safe and reliable
  • Low power consumption
  • It is designed for easy maintenance
  • Steam is not allowed to enter chamber when door is open
  • High energy efficiency and long service life
  • These devices are widely used in clinical laboratories, pharmaceutical industries, medicine and health care industry, biotechnology, microbiology for effective sterilization of glassware, biological materials, culture and other raw materials and disposables etc.
