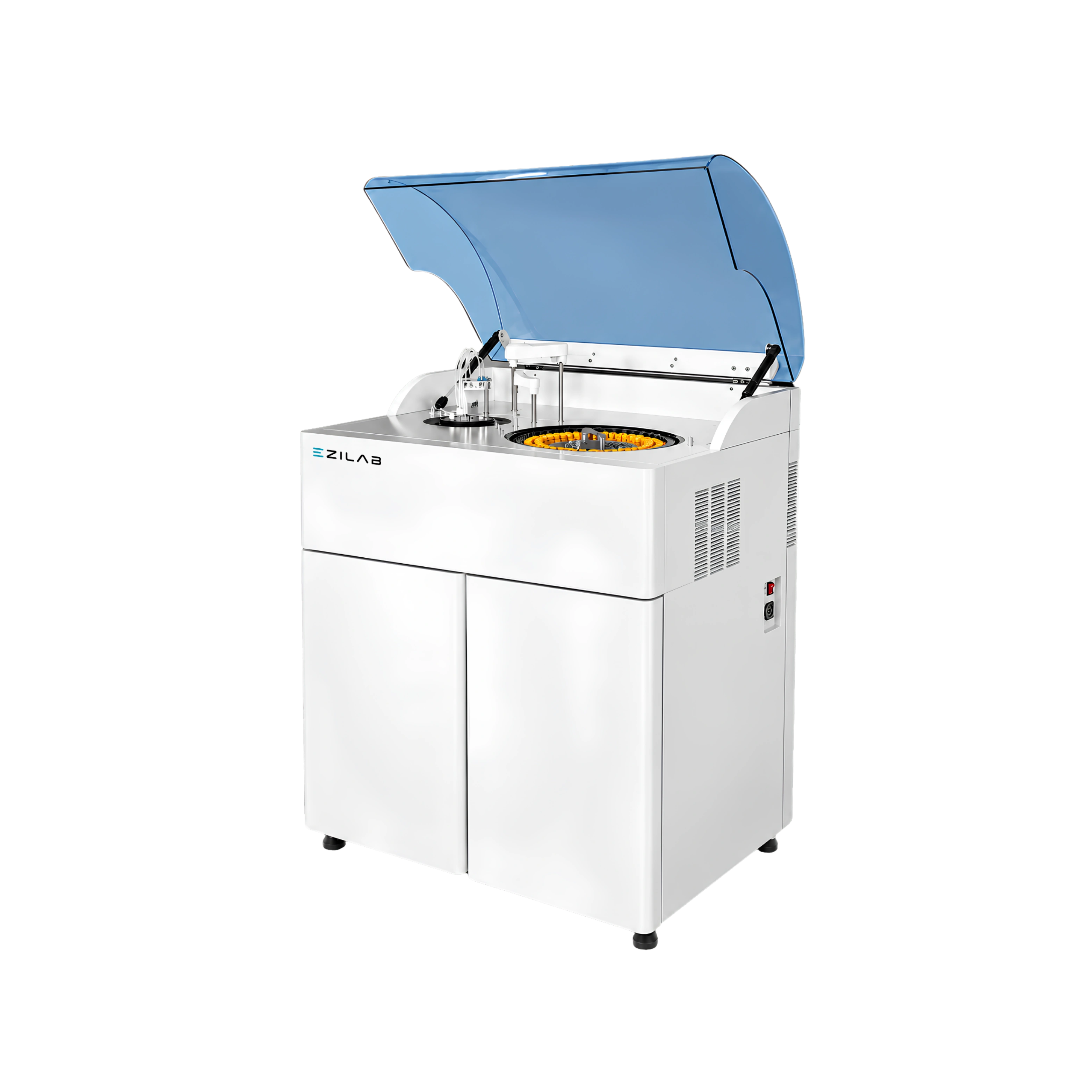

EziLab offers the Automatic Biochemistry Analyzer EZL-ABA100, a clinical analyzer that runs 200 tests per hour with CVs of 3%. It holds 40 samples in micro cups or test tubes and 80 reagents, and it pipettes 2 to 30 µL of sample in 0.1 µL steps with 20 to 300 µL of reagent. A 44-cuvette reaction tray kept at 37 ± 0.1°C handles reaction volumes of 150 to 350 µL, with results in 15 minutes or less. Colorimetric and turbidimetric principles support 1-point end, 2-point end, fixed time, and kinetic methods, with linear and nonlinear calibration. Absorbance reads from 0 to 4 Abs at 0.0001 Abs resolution. Automatic sample dilution, auto-calibrator dilution, reagent tray monitoring, and internal memory cut manual steps, and the software runs on Windows. As a chemistry analyzer, it measures glucose, liver enzymes, renal markers, lipids, and electrolytes from serum or plasma in one automated run. Hospital laboratories run routine and urgent panels for inpatients and emergency cases, while clinical laboratories process outpatient and physician orders. Diagnostic centers screen patients for diabetes, liver disease, kidney function, and heart risk, and smaller clinics bring testing in-house. See the Biochemistry Analyzers and Automatic Biochemistry Analyzer pages for full specifications.



Quantity:
$7620
Throughput 200 test per hour
Repeatability CVs 3%
Sample Volume 2 to 30 µL, step by 0.1µL
Reagent Volume 20 to 300 µL
Sample Position 40
Sample Cup Type Micro cup and test tube
Reagent Position 80
Reagent Consumption 150 µL
Reaction Tray 44 high quality plastic cuvettes
Reaction Volume 150 to 350 µL
Reaction Time Less than equal to 15 minutes
Test Principle Colorimetric method, turbidimetric
Test Method 1 point end, 2 point end, Fixed time, Kinetics
Caliberation Type Linear and nonlinear
Temperature 37 ± 0.1℃
Absorbance 0 to 4 Abs
Resolution 0.0001 Abs
Operation System Windows XP, Windows 7, Windows 8
Dimension 650 × 700 × 1200mm
Packing Dimension 870 * 720 * 132 mm
Gross weight 140 Kg
Feature AreaDescription
SoftwareEasy-to-operate analyzer software runs the test panel.
Sample DilutionAutomatic sample dilution is carried out within the run.
Reagent MonitoringReagent tray monitoring keeps watch over the loaded reagents.
Memory StorageInternal memory storage for test data.
Calibrator DilutionAuto-calibrator dilution prepares calibrators automatically.
  • Supports single automated panel runs for glucose, liver, kidney, lipid and electrolyte markers.
  • Handles routine and urgent inpatient work in hospitals.
  • Suited to outpatient and physician-ordered work in clinical labs.
  • Applied to routine chemistry panels in diagnostic centers.
  • Employed for in-house testing in smaller clinics.
