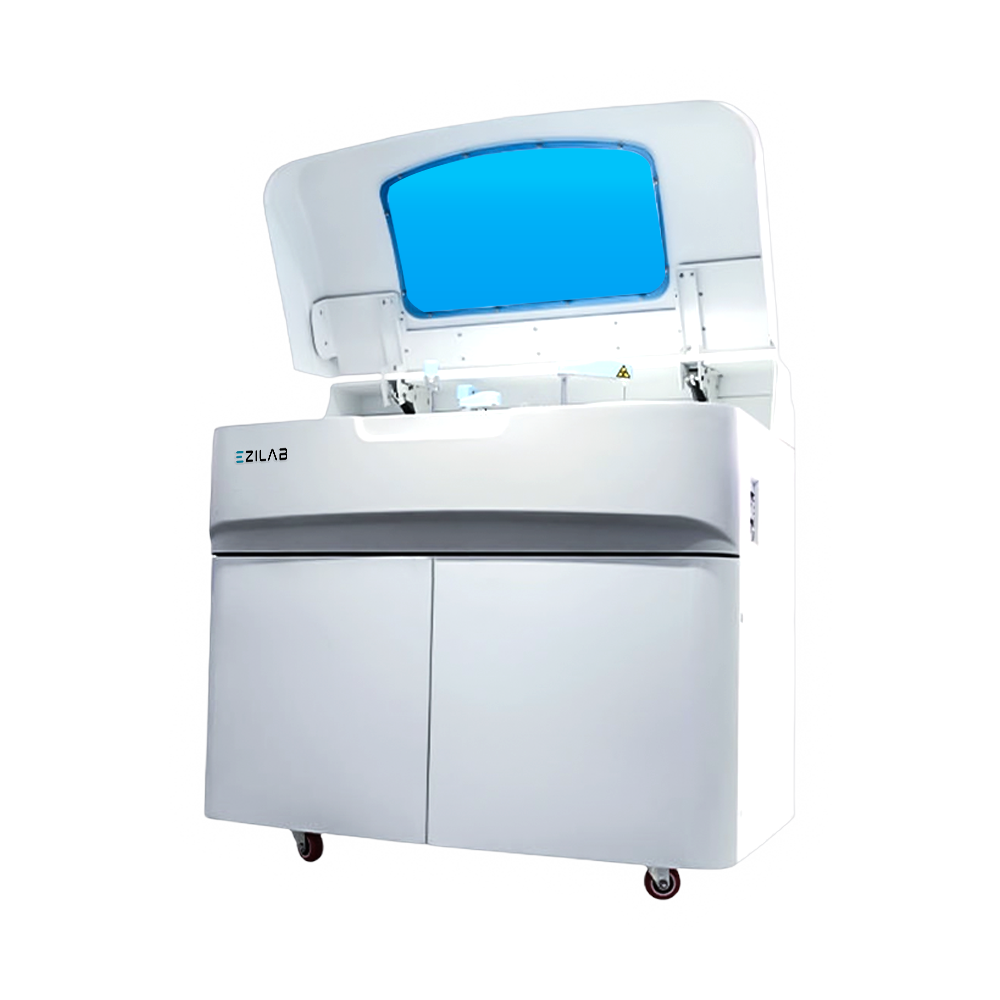

EziLab auto chemistry analyzer EZL-CA103 delivers 420 photometric tests/hour — up to 626 with ISE — with 93 reusable cuvettes and 12-wavelength grating photometry for high-throughput biochemical analysis of serum, plasma, and body fluids. The chemistry analyzer machine supports 102 sample positions and 92 reagent positions with liquid level detection, collision protection, bubble detection, and auto-dilution on both sample and reagent probes. Two independent mixers with speed detection and 8-step auto-washing cuvettes maintain cycle integrity and analytical consistency across high-volume diagnostic workloads. Reaction temperature is controlled at 37±0.1°C with a tungsten-halogen lamp light source and grating photometer for accurate spectral measurement. RS-232 serial port interface with Windows 10 compatibility supports structured data handling for clinical diagnostics, histopathology, and research institutes for seamless lab workflow integration. Explore EziLab's auto chemistry analyzer range and analyzers for related products.
| Throughput | 420 photometric tests per hour, up to 626 tests per hour with ISE |
|---|---|
| Sample Volume | 1.5μL to 45μL, step by 0.1μL |
| Reagent Volume | 10μL to 200μL, step by 0.5μL |
| Sample Positions | 102 sample positions |
| Reagent Positions | 92 reagent positions |
| Wavelength | 340nm, 380nm, 412nm, 450nm, 505nm, 546nm, 570nm, 605nm, 660nm, 700nm, 740nm, 800nm |
| Absorbance | 0 to 3.5A |
| Reagent Probe | Liquid level detection, collision protection, bubble detection, concentrated reagent with auto-dilution |
| Sample Probe | Liquid level detection, collision protection, clog detection (optional), and auto-dilution, automatic haemolysis |
| Cuvettes | 93 reusable cuvettes with 8-step auto-washing |
| Reaction Temperature | 37 ± 0.1°C |
| Mixing System | 2 independent mixers with speed detection |
| Light Source | 12V 20W tungsten-halogen lamp |
| Photometer | Grating system |
| Operation System | Windows 10 |
| Interface | RS-232 serial port |
| Water Consumption | Less than equal to 20 L/H |
| Power Supply | 220V-240V, 50/60Hz, ≤1000VA or 110V-130V, 60Hz, ≤1000VA |
| Dimension | 133 x 94 x 136mm |
| Net Weight | 315 Kg |
| Gross Weight | 330 Kg |
Efficient washing system
Advanced optical system
Reliable heating system
Intelligent mixing system
User friendly interface
Auto Chemistry Analyzer EZL-CA103 is used in in clinical diagnostics, disease monitoring, and health screening in hospitals and laboratories. It is used in pharmaceutical industries for quality control of biological formulations.
