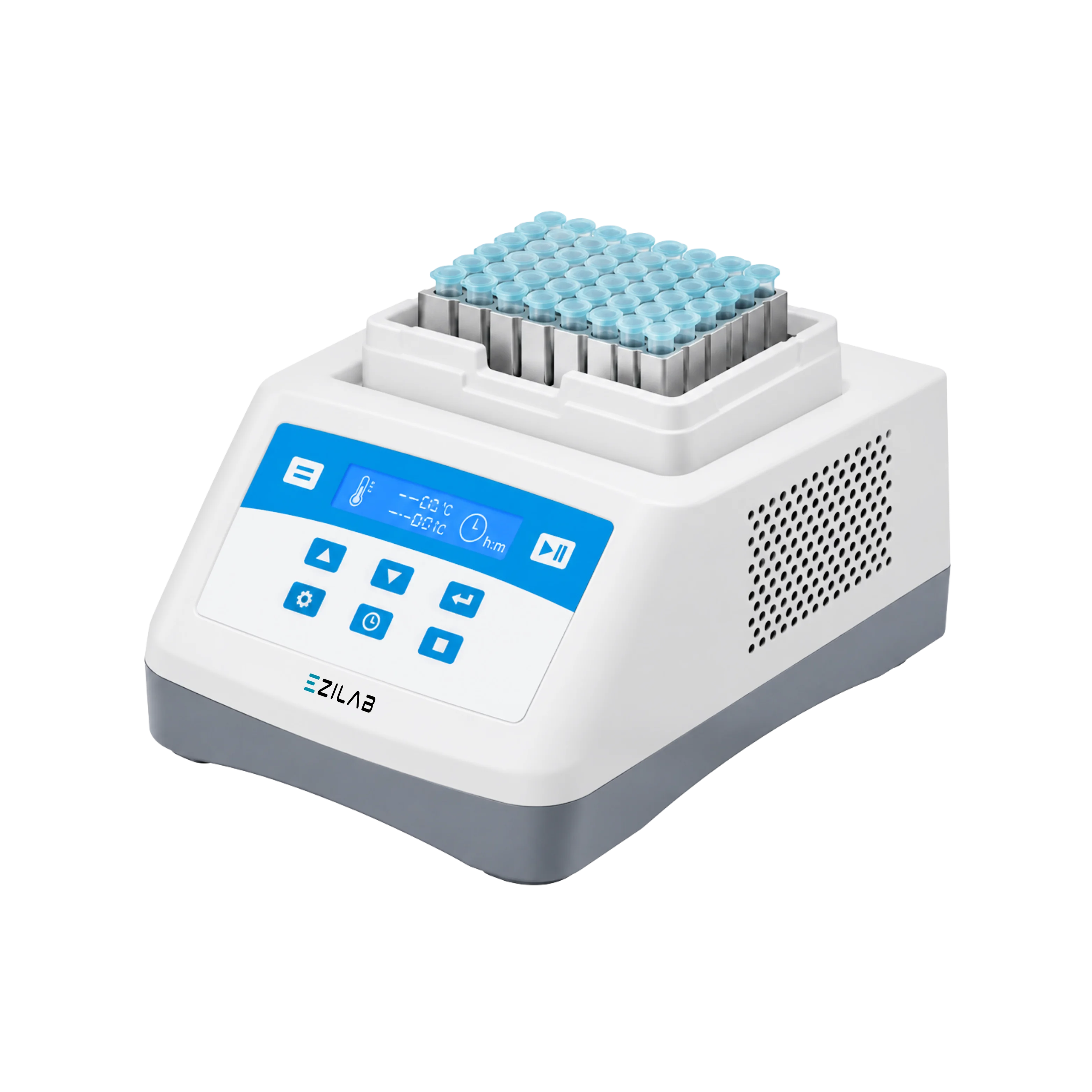

EziLab offers the Dry Bath Incubator EZL-DBI104, a heating block with active cooling that sets from -10°C to 100°C and controls from room temperature -30°C to 100°C. Temperature stays within ≤±0.3°C uniformity, with 0.1°C display resolution. The block heats from 25°C to 100°C in 10 minutes or less, cools back to 25°C in 10 minutes or less, and drops 30°C below room temperature in 25 minutes or less. An AUTO 4°C function holds finished samples cold, and multi-point programs run up to 5 steps over as many as 99 cycles. Auto resume after power loss keeps protocols on track, and over-temperature protection guards samples. Optional blocks fit 0.2 ml PCR tubes, 0.5 to 50 ml tubes, and 96-well ELISA plates. The compact 260 × 195 × 150 mm, 4.5 kg unit draws 150 W. As a dry block heater that also chills, it handles denaturing, annealing, enzyme digestion, and cold storage in one unit without water baths or ice. Clinical labs warm and hold samples for testing, biotechnology labs run enzyme reactions, and molecular biology research labs denature DNA, prepare PCR samples, and keep reagents at 4°C. See the Dry Bath Incubators and Dry Bath Incubator pages for full specifications.
| Temperature Setting Range | -10℃ to 100℃ |
|---|---|
| Temperature Control Range | Room temperature - 30℃ to 100℃ |
| Temperature Accuracy | ≤ ± 0.3℃ |
| Temperature Uniformity | ≤ ± 0.3℃ |
| Display Accuracy | 0.1℃ |
| Timing Range | 1 second to 99 minutes 59 seconds |
| Heating Time | ≤ 10 minutes ( from 25℃ to 100℃) |
| Cooling Time 1 | ≤ 10 minutes (from 100℃ to 25℃) |
| Cooling Time 2 | ≤ 25 minutes (from Room temperature to Room temperature - 30℃) |
| AUTO - 4℃ | Yes |
| Multi Points Running | Yes (maximum 5 points) |
| Multi Cycle | Yes (maximum 99 times) |
| Auto Running | Yes |
| Auto Heating | Yes |
| Auto Resume to Run | Yes |
| Power Consumption | 150 W |
| Dimensions | 260 × 195 × 150 mm |
| Weight | 4.5 Kg |
Digital Control Panel
LCD Display
High Efficiency
Over-temperature protection
Durable Construction
96 × 0.2 ml Test tubes Block × 1 Piece 54 × 0.5 ml Test tubes Block × 1 Piece 35 × 1.5 ml Test tubes Block × 1 Piece 35 × 2.0 ml Test tubes Block × 1 Piece 15 × 0.5 ml + 20 × 1.5 ml Test tubes Block × 1 Piece 96 × 0.2 ml Elisa plate Test tubes Block × 1 Piece 24 × 5 ml Test tubes Block × 1 Piece 15 × 10 ml Test tubes × 1 Piece 12 × 15 ml Test tubes Block × 1 Piece 6 × 50 ml Round bottom Test tubes Block × 1 Piece 6 × 50 ml Cone bottom Test tubes Block × 1 Piece
Dry Bath Incubator EZL-DBI104 is used in clinical, biotechnological and molecular biological research laboratories and industries for heating of samples.
