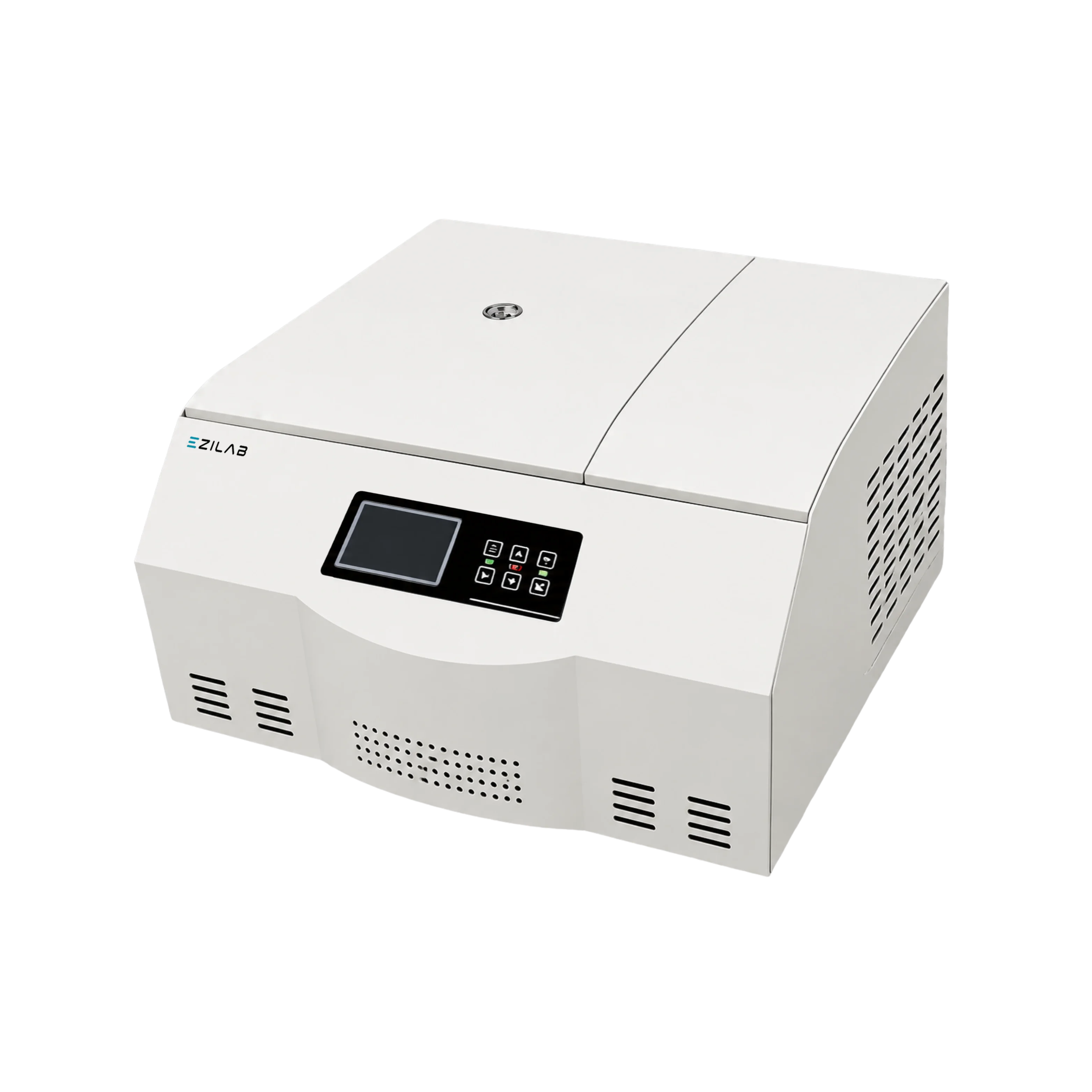

EziLab High Speed Refrigerated Centrifuge EZL-HRC111 delivers consistent refrigerated separation at 21000rpm and 31061 RCF for strong pelleting and sample clarification across laboratory centrifuge workflows. The system supports 4 × 100ml capacity for routine clinical and research workloads. Speed variation holds within 10rpm for repeatable outcomes, with noise at 58dB for bench and floor lab environments. Acceleration and deceleration controls provide 10-step management for controlled ramping. Power input runs on AC 220V 50Hz for standard installation. Suited to clinical diagnostics, research institutes, and cell culture labs requiring high-speed sample processing via Lab Equipment and EziLab's full range of laboratory centrifuges for lab workflow integration.
| Maximum Speed | 21000 rpm |
|---|---|
| Maximum RCF | 31061 × g |
| Maximum Capacity | 4 × 100 ml |
| Timer Range | 1 to 99 min 59 s |
| Speed Accuracy | ±10 r/min |
| Noise Level | Less than equal to 58 dB(A) |
| Acceleration/Deceleration | 10 to 10 steps |
| Power Supply | AC 220V 50Hz 10A 880W |
| Dimensions (W×D×H) | 600 × 570 × 380 mm |
Brushless motor drive
Quiet lab operation
Advanced temperature control
Durable lab construction
User-friendly programming
High Speed Refrigerated Centrifuge EZL-HRC111 is ideal for use in clinical diagnostics, research institutes, and cell culture labs. It supports high-speed, ensuring consistent sample processing during routine and advanced research.
Rotor Type | Capacity (ml) | MaximumSpeed (r/min) | Maximum RCF (×g) |
Angle Rotor 01 | 12 × 1.5 / 2.2mL | 21000 r/min | 3106 × g |
Angle Rotor 02 | 12 × 5 mL | 14000 r/min | 14024 × g |
Angle Rotor 03 | 12 × 10 mL | 15000 r/min | 20577 × g |
Angle Rotor 04 | 24 × 1.5/2.2ml | 16000 r/min | 22896 × g |
Angle Rotor 05 | 48 × 1.5/2.2ml | 14000 r/min | 20378 × g |
Angle Rotor 06 | 12 × 8 × 0 . 2 mL | 14000 r/min | 23120 × g |
Angle Rotor 07 | 10 × 15 mL | 13000 r/min | 20595 × g |
Angle Rotor 08 | 6 × 50 mL | 13000 r/min | 17005 × g |
Angle Rotor 09 | 4 × 10/100 mL | 11000 r/min | 13280 × g |
Adapter Type | Capacity (ml) | MaximumSpeed (r/min) | Maximum RCF (×g) |
Adapter 01 | 12 × 0.5ml | 21000 r/min | 3106 × g |
Adapter 02 | 12 × 0.2ml | 21000 r/min | 3106 × g |
Adapter 03 | 12 × 1.5ml | 14000 r/min | 14024 × g |
Adapter 04 | 12 × 5ml | 15000 r/min | 20577 × g |
Adapter 05 | 12 × 1.5ml | 15000 r/min | 20577 × g |
Adapter 06 | 24 × 0.5ml | 16000 r/min | 22896 × g |
Adapter 07 | 24 × 0.2ml | 16000 r/min | 22896 × g |
Adapter 08 | 48 × 0.5ml | 14000 r/min | 20378 × g |
Adapter 09 | 48 × 0.2ml | 14000 r/min | 20378 × g |
Adapter 10 | 10 × 5ml | 13000 r/min | 20595 × g |
Adapter 11 | 10 × 1.5ml | 13000 r/min | 20595 × g |
Adapter 12 | 6 × 15ml | 13000 r/min | 17005 × g |
Adapter 13 | 6 × 10 ml | 13000 r/min | 17005 × g |
Adapter 14 | 6 × 1.5ml | 13000 r/min | 17005 × g |
Adapter 15 | 4 × 50ml | 11000 r/min | 13280 × g |
Adapter 16 | 4 × 15 ml | 11000 r/min | 13280 × g |
Adapter 17 | 4 × 10ml | 11000 r/min | 13280 × g |
Adapter 18 | 4 × 5ml | 11000 r/min | 13280 × g |
Adapter 19 | 4 ×1.5ml | 11000 r/min | 13280 × g |
