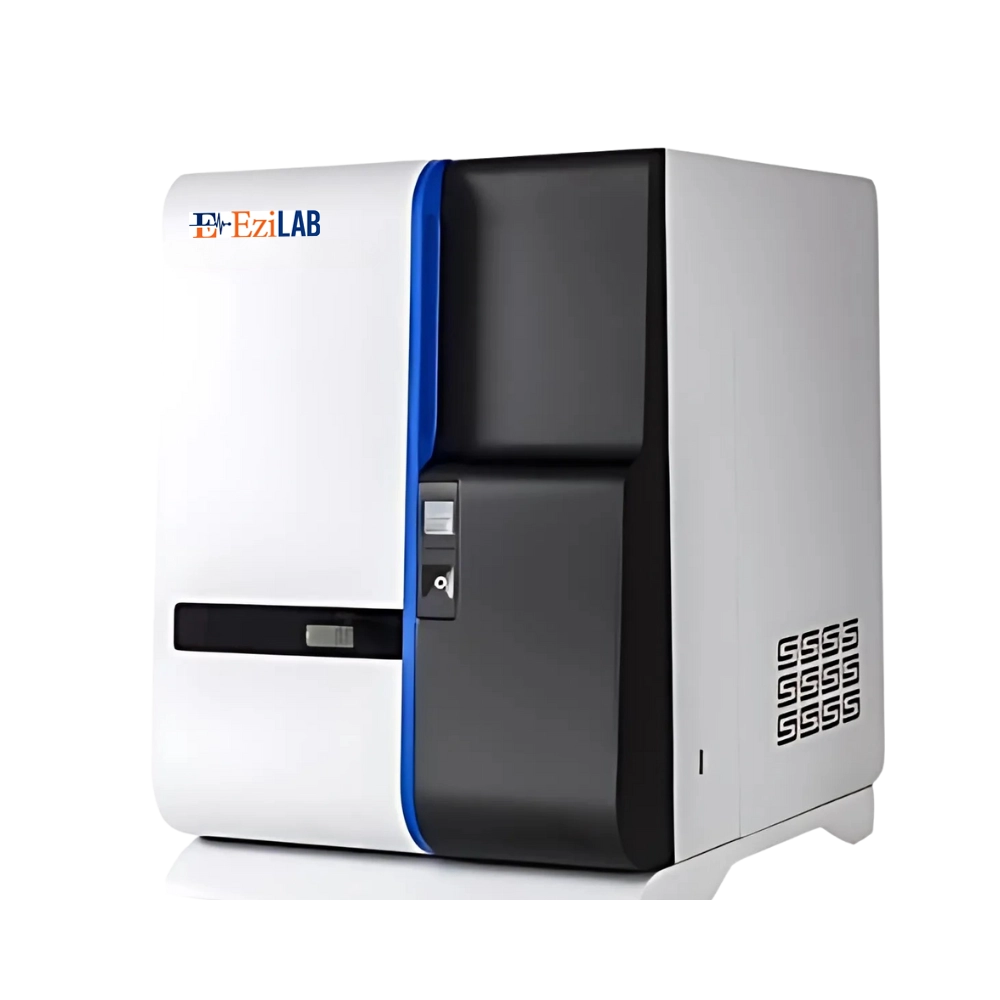

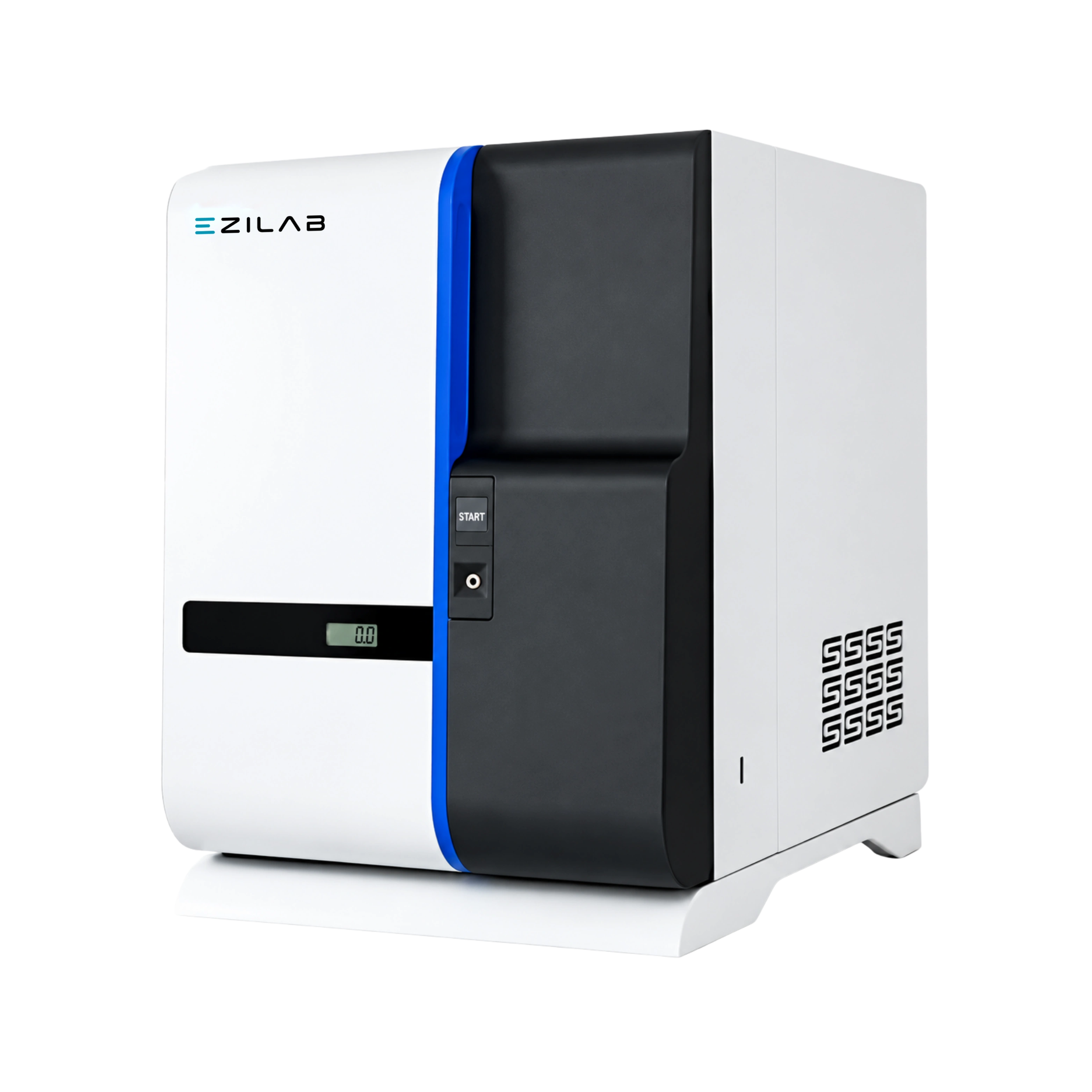

EziLab offers the Ion Chromatograph EZL-IC62, a suppressed ion chromatography platform with a 42 MPa pump and flow from 0.001 to 9.999 mL/min. Its 0.8 µL conductivity cell reads 0 to 45,000 µS/cm at 0.0020 nS/cm readout, and a self-regenerating electrolytic micro-membrane suppressor lowers background signal. Eluent pre-heating and circulating 3D temperature control hold the system within 1°C, and a large color LCD with smart startup and shutdown simplifies runs. The wide conductivity range reads brackish water, industrial process water, and high-dissolved-solids wastewater directly, avoiding dilution steps. As an ion chromatography system for anion analysis and cation work, it quantifies chloride, nitrate, sulfate, fluoride, and similar ions, and the strong ion exchanger also supports preparative runs. The workstation software logs each chromatogram for reporting. Injector and detector ratings of 35 and 10 MPa match the pump. Environmental protection agencies monitor drinking water, surface water, and effluent, while disease control labs test public health samples. Food and chemical producers check ionic content in products and raw materials, electronics makers verify ultrapure water, and mining and metallurgy labs track leach liquors. Commercial labs value this ion chromatography instrument for mixed loads. Ion lists and sample conductivity narrow the field fast, and both are easy to match against the Chromatograph category and Ion Chromatograph range.
| Cell Volume | ≤0.8 µL |
|---|---|
| Detection Range | 0 to 45000 µS/cm |
| Detection Resolution | ≤0.0020 ns/cm |
| Electronic Noise | 0.02 ns |
| Pump Maximum Pressure | 42 MPa |
| Pressure display accuracy | ≤0.1 MPa |
| Flow Rate Range | 0.001 to 9.999 mL/min |
| Injector Maximum Pressure | 35 MPa |
| Detector Maximum Pressure | 10.0 MPa |
| Operating Temperature Range | 5° to 60°C |
| Temperature Accuracy | ± 1°C |
| Power Requirement | 150 W |
| Dimension (L×W×H) | 350×470×510 mm |
| Net Weight | 26 Kg |
| Gross Weight | 32 Kg |
Flow rate range: with 0.001 to 9.999 mL/min
Eluent pre-heating
Built-in circulating 3D constant temperature technology
Self-regenerating electrolytic micro-membrane suppressor
Observatory intelligent work station
Intelligent switch to complete the startup parameter setting and shutdown operation
Accurate and reliable system
Run more samples and more molecules on a single system
Strong ions exchanger
Outstanding for preparative applications
Flexible processing with high productivity
Large size LCD color screen for easy operation
Intelligent temperature control to ensure better accuracy of analysis
| • | Used in environmental protection agencies for monitoring drinking water, surface water and effluent. |
| • | Applied in disease control laboratories for testing public health samples. |
| • | Used in food and chemical production for checking ionic content in products and raw materials. |
| • | Applied in electronics manufacturing for verifying ultrapure water. |
| • | Used in mining and metallurgy laboratories for tracking leach liquors. |
| • | Applied in commercial laboratories for chloride, nitrate, sulfate and fluoride analysis across mixed loads. |
