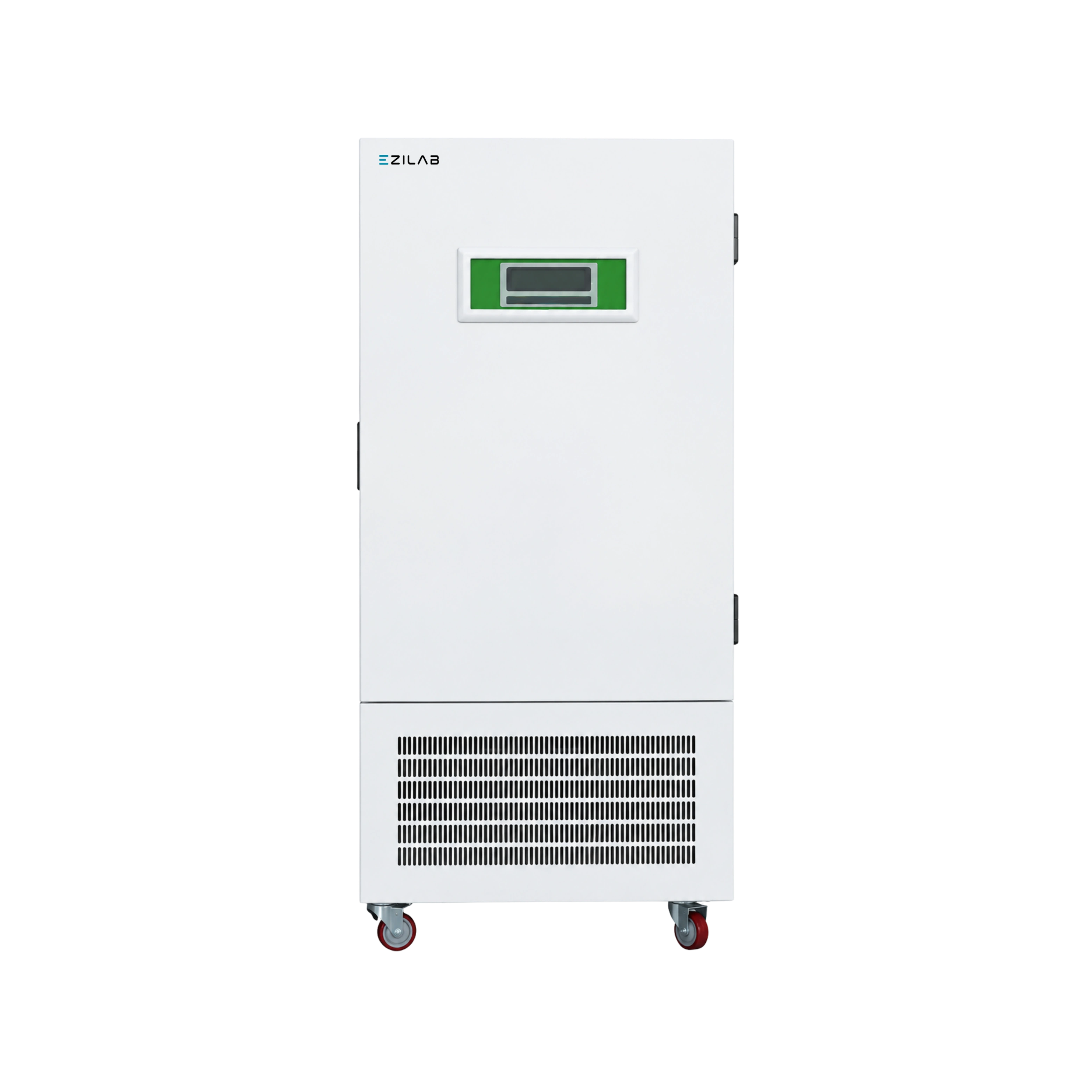

EziLab's Temperature and Humidity Test Chamber EZL-TH166 covers 0C to 65C with 30% to 95% RH humidity control across a 175L chamber, holding temperature uniformity within 1C and humidity stability within 3% RH using an R134a refrigeration system rated at 1600W. PID control keeps setpoints steady through long test cycles, while a safety alarm system, stable air circulation, and USB data recording capture full test histories for review. At 450 x 420 x 930 mm inside, the chamber fits full-size product samples without crowding. As a thermal chamber built for combined heat and humidity stress testing, this unit exposes materials, components, and packaging to conditions that mimic real-world storage and transport. Industrial and mining enterprises use it to qualify equipment against temperature and moisture extremes before deployment, while food and beverage makers run shelf-life trials under controlled climate chamber conditions. Laboratories and scientific research units apply the same temperature humidity chamber settings to material aging studies across product development. Quality assurance teams across several industries increasingly rely on a compact environmental chamber like this one to replace outsourced climate testing. See the Temperature and Humidity Test Chambers and Temperature and Humidity Test Chamber pages for further specifications and ordering details.
| Volume | 175 L |
|---|---|
| Temperature Range | 0 to 65˚C |
| Operation Temperature | 5 to 40 ˚C |
| Temperature Uniformity | ± 1℃ |
| Temperature Fluctuation | Low temperature ±1℃, High temperature ±0.5℃ |
| Humidity Control Range | 30 to 95 %RH |
| Humidity Stability | ±3 % RH |
| Refrigerant | R134a |
| Power Rating | 1600W |
| Chamber Size (W × D × H ) | 450 × 420 × 930 mm |
| Exterior Size (W × D × H ) | 650 x 730 x 1750 mm |
High humidity accuracy
Precise PID control
Safety alarm system
Stable air circulation
USB data recording
Temperature and Humidity Test Chamber EZL-TH166 are widely used in industrial and mining enterprises, food and beverage industry, laboratories and scientific research units.
