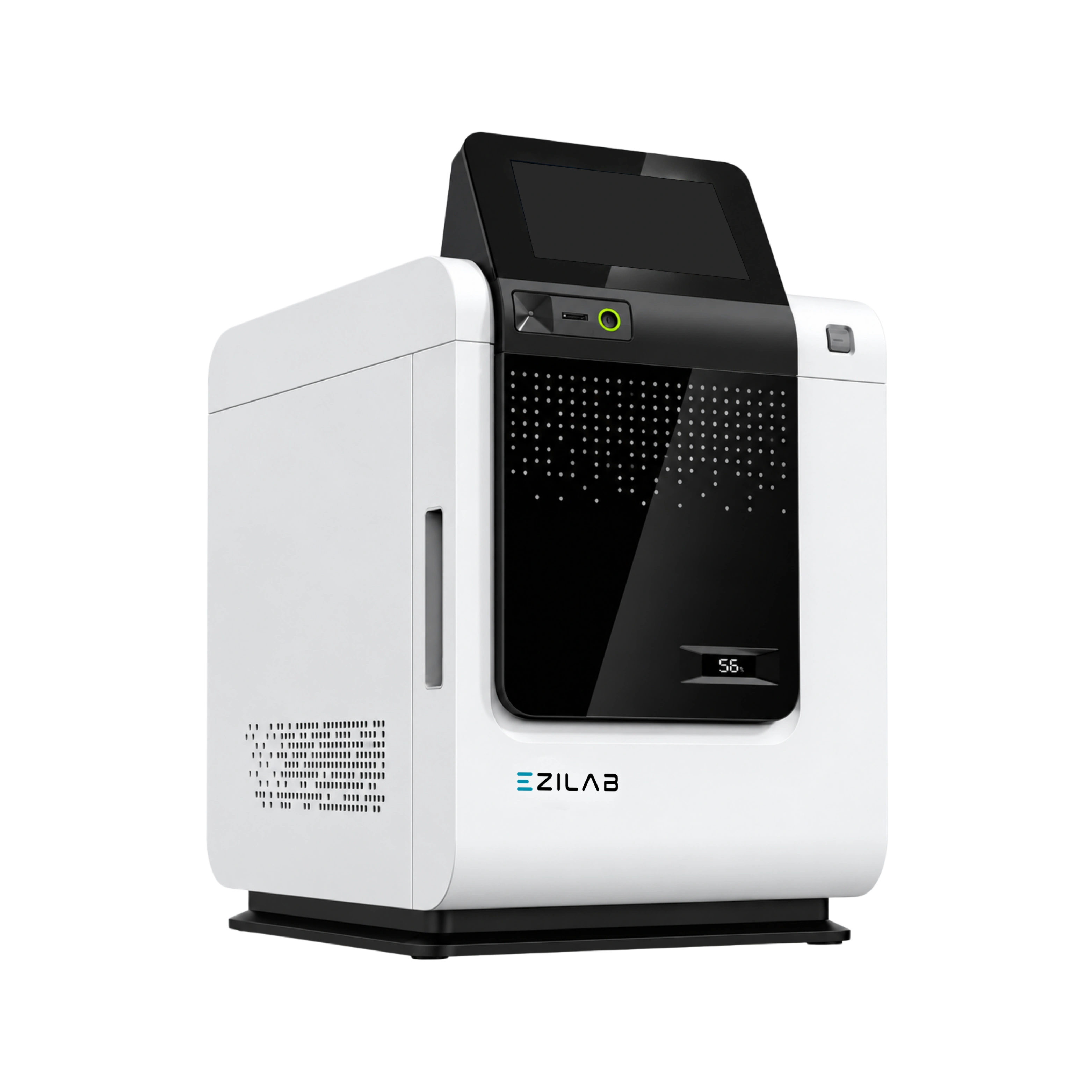

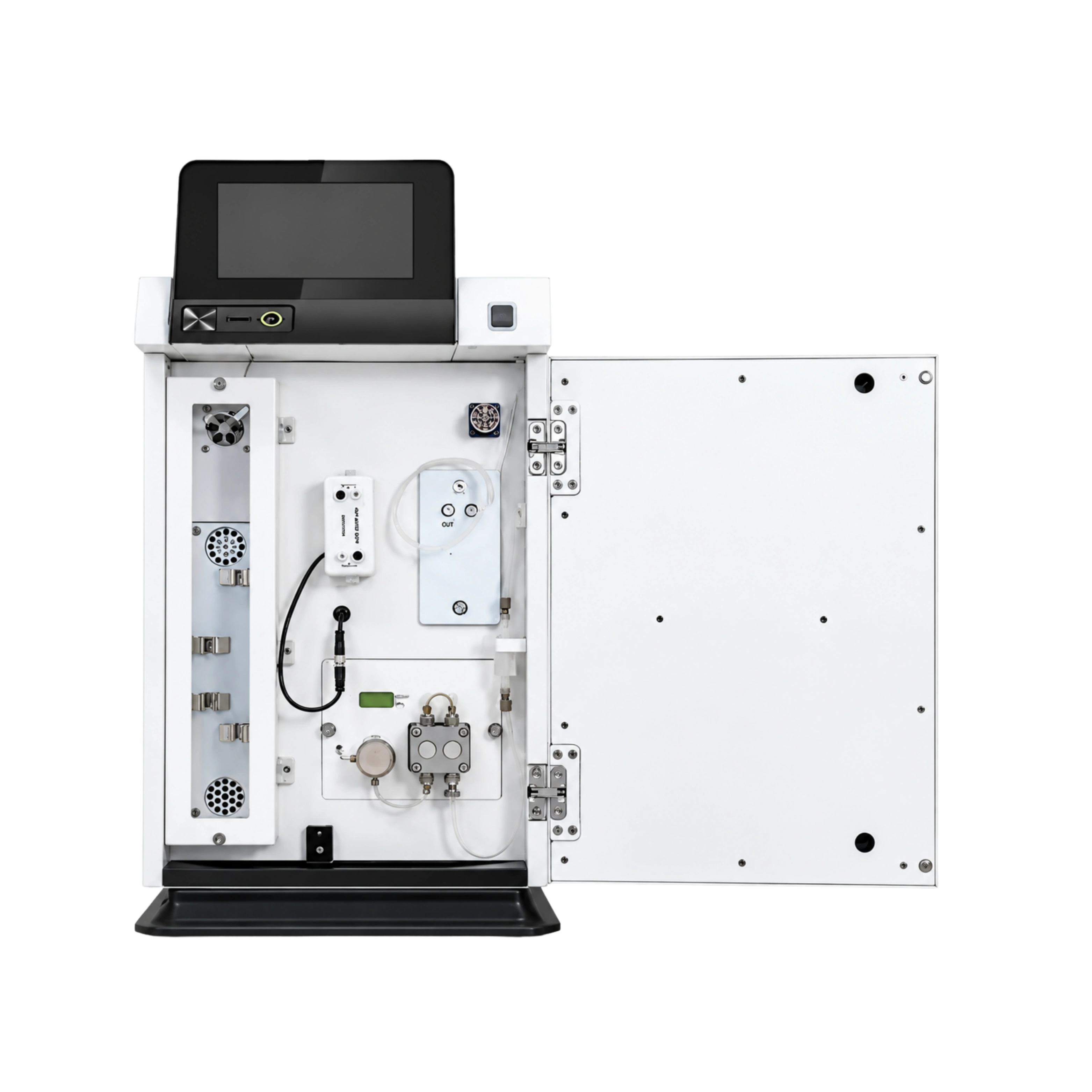

EziLab supplies the Ion Chromatograph EZL-IC63 for environmental laboratories that need standard conductivity detection with digital monitoring at 42MPa pressure, the same core configuration as the original conductivity-based model in this catalog. This ion chromatography system measures anion and cation concentrations through conductivity detection, with digital pressure and flow monitoring giving lab staff a running check on column condition without interrupting a run to verify system performance. That digital monitoring capability lets technicians catch developing column or system issues early — pressure or flow drift outside expected parameters often signals column degradation or blockage before it affects result quality, letting labs address the issue proactively rather than discovering it through failed or inconsistent results. The 42MPa pressure rating supports standard column configurations for routine anion and cation analysis work, matching the isocratic conductivity-based approach used across drinking water compliance testing, wastewater monitoring, and general ionic contaminant screening rather than the gradient-elution capability the multi-eluent model in this catalog offers. Environmental labs running routine, standard-method ion chromatography work rather than complex gradient separations get straightforward, monitored performance from this configuration. See the Ion Chromatography System and Ion Chromatograph ranges for routine ionic analysis needs across USA environmental laboratory settings.
| Cell Volume | ≤0.8 µL |
|---|---|
| Detection Range | 0 to 45000 µS/cm |
| Detection Resolution | ≤0.0020 ns/cm |
| Electronic Noise | 0.02 ns |
| Baseline Noise | ≤0.001 µs |
| Baseline Drift | ≤0.001 µs |
| Pump Maximum Pressure | 42 MPa |
| Pressure display accuracy | ≤0.1 MPa |
| Flow Rate Range | 0.001 to 9.999 mL/min |
| Injector Maximum Pressure | 35 MPa |
| Detector Maximum Pressure | 10.0 MPa |
| Operating Temperature Range | 5° to 60°C |
| Temperature Accuracy | ± 1°C |
| Power Requirement | 150 W |
| Dimension (L×W×H) | 336×650×458 mm |
| Net Weight | 26 Kg |
| Gross Weight | 32 Kg |
Flow rate range: with 0.001 to 9.999 mL/min
Eluent pre-heating
Built-in circulating 3D constant temperature technology
Self-regenerating electrolytic micro-membrane suppressor
Observatory intelligent work station
Intelligent switch to complete the startup parameter setting and shutdown operation
Accurate and reliable system
Run more samples and more molecules on a single system
Strong ions exchanger
Outstanding for preparative applications
Flexible processing with high productivity
Large size LCD color screen for easy operation
Intelligent temperature control to ensure better accuracy of analysis
It is widely used in the fields of environment protection, disease control, food industries, chemical industries commercial labs, electronics, mining and metallurgy.
