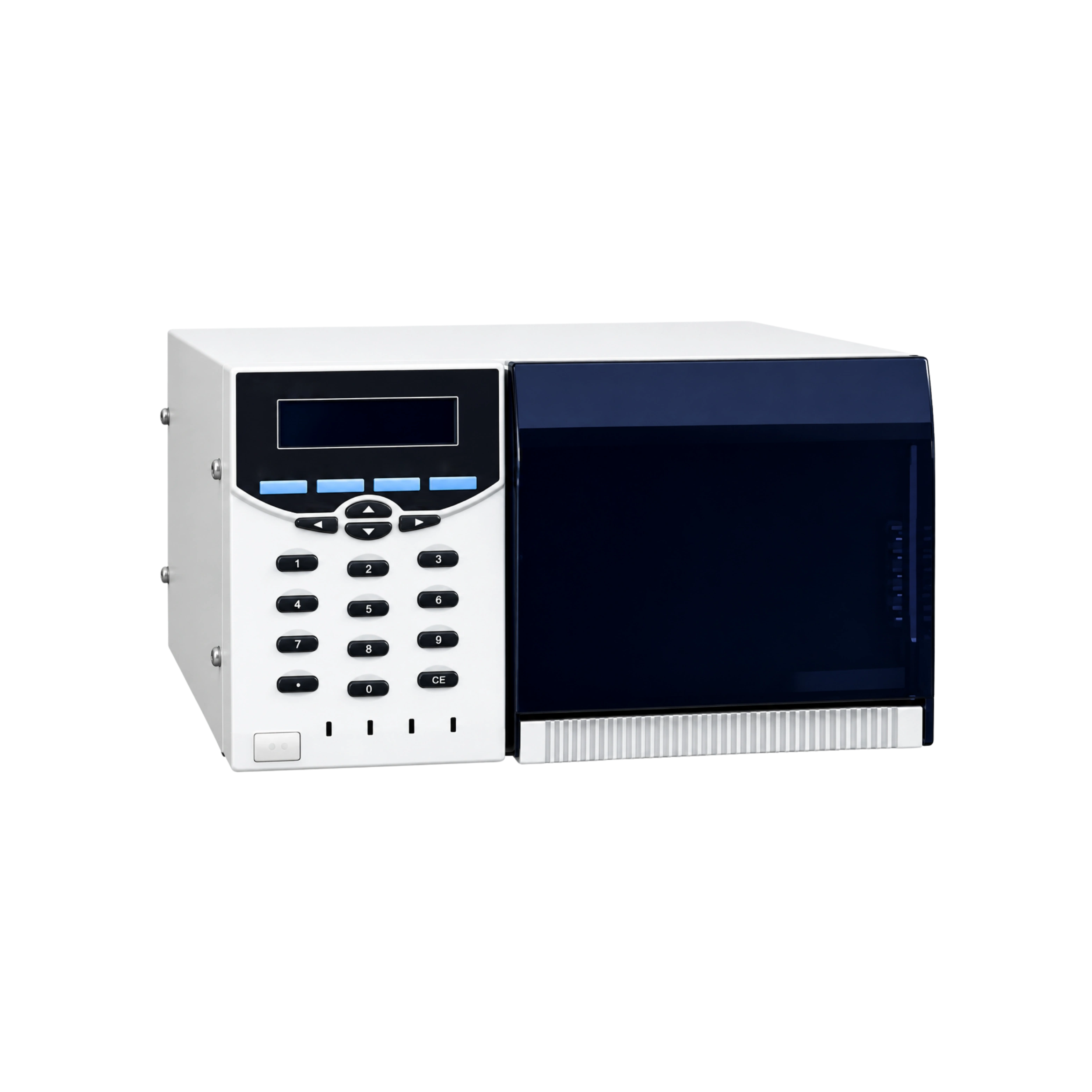

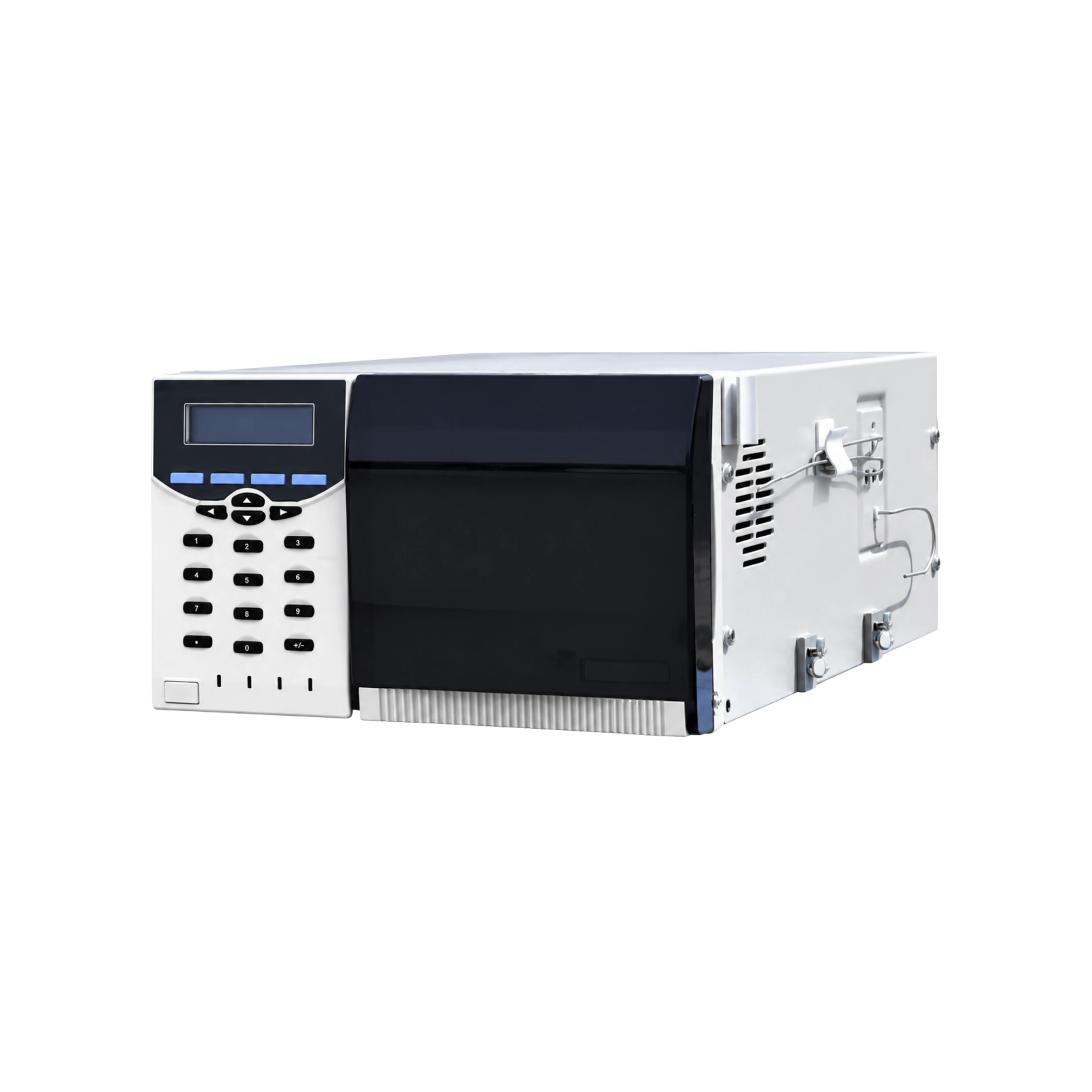

EziLab Analytical HPLC System EZL-AHS51 operates with a pump reaching 42MPa and UV-Visible detection across a wide wavelength range, delivering a high-performance liquid chromatography system built for separation and analysis of compounds in liquid samples. The 42MPa pump ensures accurate and stable flow delivery throughout extended analytical runs, maintaining pressure consistency without deviation across varying mobile phase compositions. The UV-Visible detector covers a broad wavelength range for compound detection, supporting method development across diverse analyte classes without detector reconfiguration. A manual injector allows consistent sample introduction, reducing variability between sequential injections during routine analytical workflows. An integrated workstation manages data acquisition and processing, enabling real-time monitoring and post-run analysis without external software dependencies. The compact modular configuration supports bench-top installation in space-constrained laboratory environments without compromising system performance or detector sensitivity. This analytical HPLC system serves pharmaceutical analysis facilities, food testing laboratories, environmental analysis units, chemical research departments, protein analysis workflows, and quality control laboratories. Explore EziLab's full range of HPLC systems and analytical instruments for related requirements.
| Pump Flow Rate | 0,001 to 10.000 mL/min (Step: 0.001 mL/min) |
|---|---|
| Pump Accuracy | ≤ +0.3% |
| Pump Precision | ≤ 0.1% RSD |
| Maximum Pressure | 42 MPa (6000 psi) |
| Detector | UV-Visible Detector |
| Detector Linearity | 1.8 AU |
| Wavelength Range | 190 to 700 nm |
| Noise | ≤ ± 1.0 × 10-5AU |
| Drift | ≤ 2.0 × 10-4 AU/h |
| Sampler Injector | Rheodyne 7725 |
| Column | Supersil ODS2 5ym ID4.6 × 200mm |
| Workstation | Elitapex |
| Pump Power Supply | AC220V, 50 Hz |
| Detector Power Consumption | 100 W |
| Detector Power Supply | AC220V ± 10%, 50 Hz |
| Power Supply | AC220V ±10%, 50Hz |
| Pump Dimension (L×W× H) | 420 × 260 × 160 mm |
| Detector Dimensions (L × W × H) | 420 × 260 ×160 mm |
| Package Dimensions(W×D×H) | |
500×360×300mm 580×400×280mm × 2 |
| Pump Weight | 112 kg |
| Detector Weight | 12 kg |
| Gross Weight | 38 kg |
Control mode selection external/internal
Superior repeatability for reliable performance
Optimized control protocol for smooth communication
Stable real-time feedback on module status
Provided with Valve Mounting Frame
Pump Detector Solvent Bottle Tray
Solvent bottle 500ml,1000ml Column oven Evaporating light scattering detector Fluorescence detector
It is used in pharmaceutical, petroleum, research institutes, and food industrial applications to separate and detect compounds in chemical analysis, poison analysis, environmental analysis, protein food detection, medicine testing, and polymer analysis.
