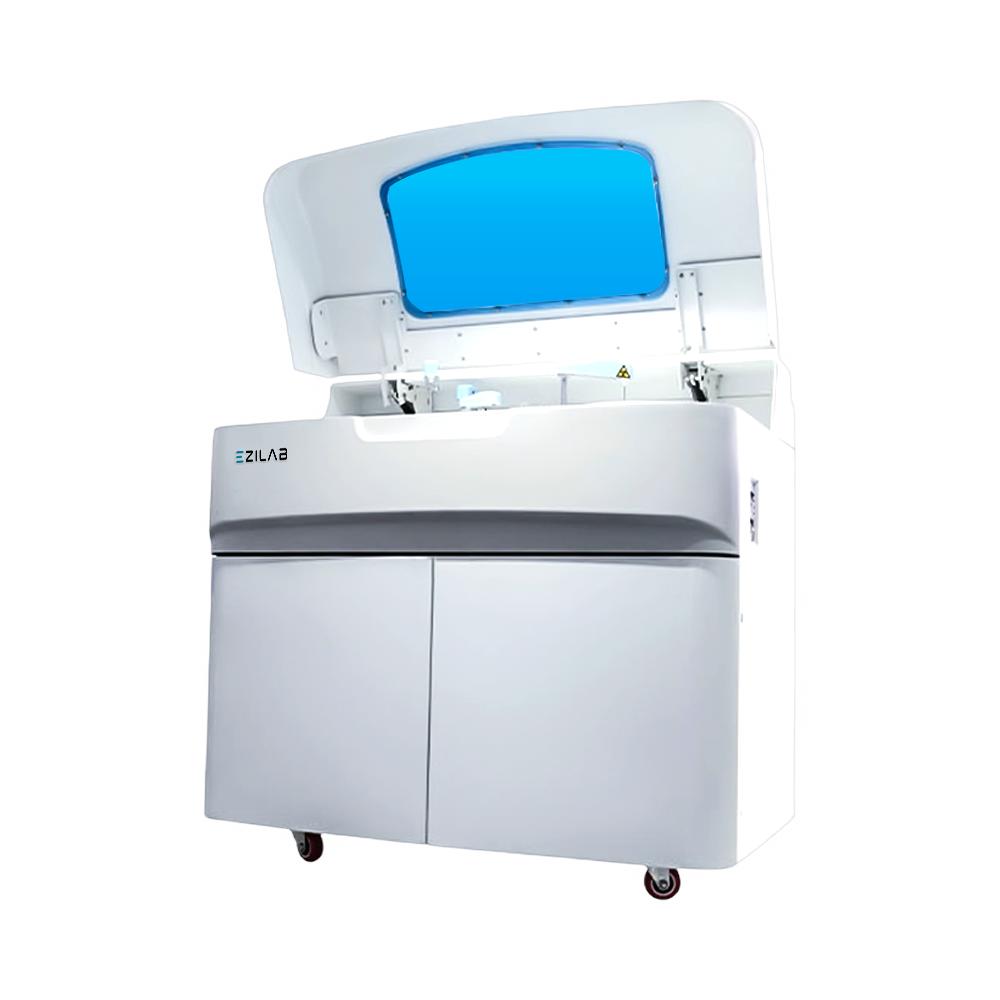

EziLab offers the Auto Chemistry Analyzer EZL-CA104, a lab biochemistry analyzer running 600 tests per hour on serum, plasma, urine and other body fluids. The carousel holds 90 samples and 180 refrigerated reagent positions, probes draw 2 to 70 µL of sample and 20 to 350 µL of reagent, and 120 reusable cuvettes wash on board. A halogen lamp feeds post-spectral photometry at eight wavelengths from 340 to 700 nm, the reaction bath holds 37 ± 0.1 °C, probes self-clean, and a STAT slot takes urgent tubes. Calibration spans K factor through spline and logit fits, QC applies Westgard rules, a barcode scanner reads tubes, and bidirectional HL7 LIS runs over LAN. The cabinet is 1167 by 780 by 1016 mm at 216 kg. Choose it over the 420 test sibling when a mid-size hospital needs 600 results an hour without ISE. District hospitals run routine panels, private diagnostic chains batch outpatient work, veterinary reference labs profile animal sera, and research institutes screen metabolic markers. Daily menus cover liver and renal panels, lipids, and specific proteins. Reagent cost per test adds up over the years; ask whether the 180 positions accept third-party reagents or only supplier packs. Throughput tiers from 200 to 800 tests an hour are grouped in Analyzer, with Biochemistry Analyzer as the class for this model.
| Throughput | 600 tests/hour |
|---|---|
| Sample Volume | 2 to 70 µl |
| Reagent Volume | 20 to 350 µl |
| Sample Positions | 90 sample positions |
| Reagent Positions | 180 refrigerated reagent positions |
| Wavelength | 340,405,450,510,546,578,630,700nm |
| Absorbance | 0~3.0 Abs |
| Humidity | 30 to 80% |
| Washing | Automatic cuvettes washing |
| Probe Washing | Automatic washing interior and exterior |
| Reagent Cooling | Refrigerated tray with independent switch |
| Cuvettes | 120 reusable cuvettes, optical length 6mm |
| Mixed Probe | Independent stirring |
| Stat Function | Yes |
| Light Source | 12V/30W halogen lamp |
| Spectrophotometry | Post-spectral spectrophotometry |
| Calibration | Linear: K factor, 1-point, 2-point and multipoint linearNon-Linear: Spline, Polygon, Index, Logarithm, Logit-4P,Logit-5 |
| Quality Control | Real-time QC, Westward multi rule, Cumulative sum check, Twin Plot(2D) |
| Software | Windows 7/8/10, 32 or 64bit |
| LIS System | Bi-direction, support HL7 protocol |
| Interface | LAN port access |
| Printer | External, multiple reporting mode available |
| Temperature | 10 to 30°C |
| Temperature Control | 37±0.1°C, real time monitor |
| Water Consumption | Deionized water: 15L/H |
| External Dimension (W×D×H) | 1167×780×1016 mm |
| Package Dimension (W×D×H) | 1348×928×1399 mm |
| Net Weight | 216 kg |
| Gross Weight | 290 kg |
Programmable automatic stand-by and wake-up functionalities
Intelligent software
High quality components
Uninterrupted workflow
Inventory management
Cost effective operation
Crash and collision detection
Robust testing capabilities
Efficient reagent and consumable use
Simplify operations with user friendly graphical user interface design and touch-screen monitor
Built-in barcode scanner
Refrigerated tray with independent switch
This device is used in many Biology and Histopathology Laboratories to extract the serum, plasma, urine or any other body fluid, Research institutes etc.
