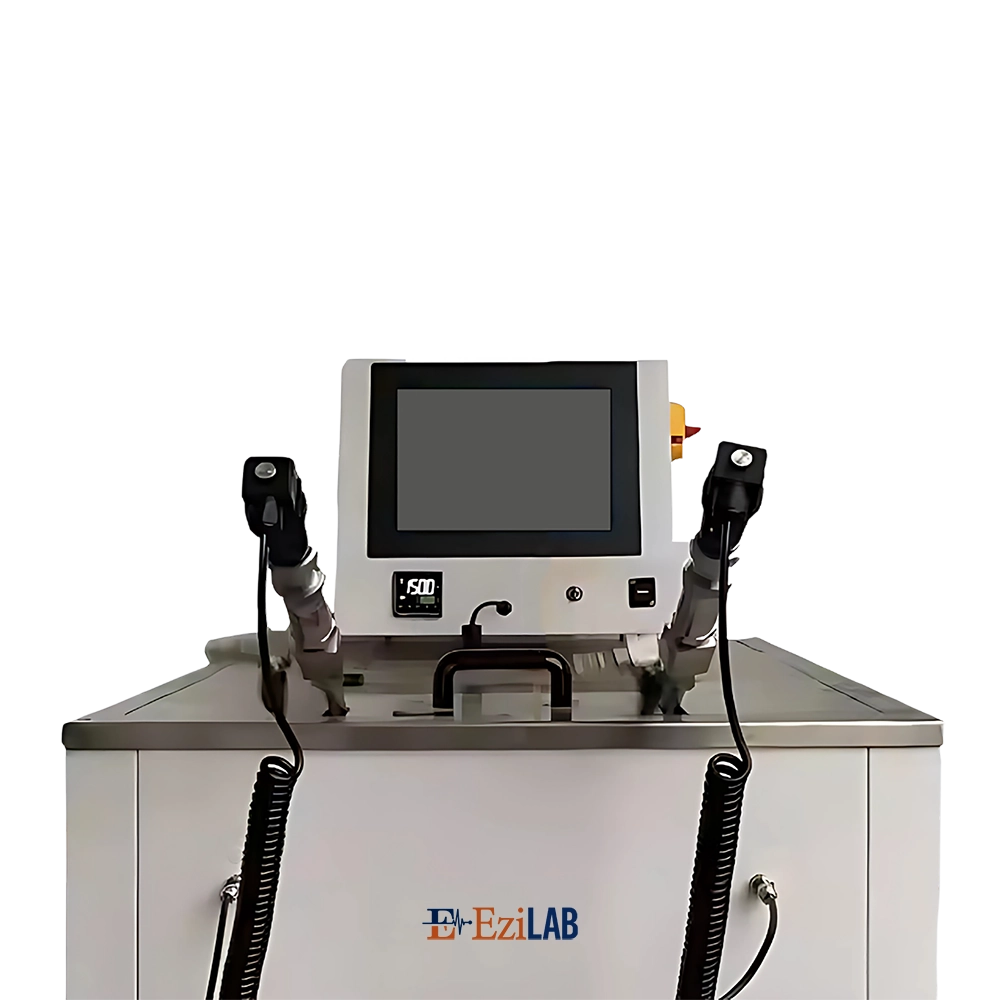

EziLab Automatic Lubricating Oils Oxidation Stability Tester EZL-LOST100 evaluates oxidation stability of turbine oils across railway maintenance testing, power generation lubricant checks, automotive research, and petroleum laboratory applications. The oil bath operates from room temperature to 200C with fine temperature precision, while a pressure sensor monitors conditions up to 1.6 MPa for oxidation stability apparatus test control. Parallel testing mode allows multiple samples to be assessed under matched parameters, and motor rotation maintains consistent agitation during test cycles. A 30 L bath capacity suits routine laboratory workloads without capacity limitations. EziLab's Lab Equipment and petroleum testing equipments carry the complete oxidation stability apparatus and lubricant performance testing range.
| Temperature Range of The Oil Bath | RT to 200.0℃. Adjustable. |
|---|---|
| Pressure Sensor | 0 to 1.6 MPa，precision ± 2% |
| Temperature precision | ± 0.1℃ |
| Test Mode | Parallel Test |
| Standards | SH/T 0193, ASTM D2272 |
| Motor | 100 ± 5 r/min |
| Angle Between Bomb and Water Level | 30° |
| Oil bath capacity | 30 L |
| Heating Power | 2500W |
| Power Supply | AC 220 ± 10% V, 50Hz |
| Dimension | 550mm × 800mm × 1000mm |
| Net Weight | 45kg |
High efficiency, no human intervention needed
Dual-sample testing with double-bomb design
Good stability, low noise
Rotation unit from an imported brand
It autonomously detects the inflection point
Main Unit × 1 Test Bomb × 2 Connection Cable between Test Bomb and Pressure Transmitter × 2 Spanner of Test Bomb × 1 Oxygen Filling Hose × 2 Stainless Steel Sheeting × 2 Thermometer × 1 Temperature Sensor (Already Setup) × 1 Oxygen Circuit Set (Joint, PVC Pipe, Quick Coupling) × 1 Seal Ring × 4 Glass Sample Container × 2 PTFE cover × 2 Copper Coil × 4 Winder × 1
Our Automatic Lubricating Oils Oxidation Stability Tester is essential for industries like railway maintenance, power generation, research, and automotive sectors. It evaluates the oxidation stability of steam turbine oils with identical constituents.
