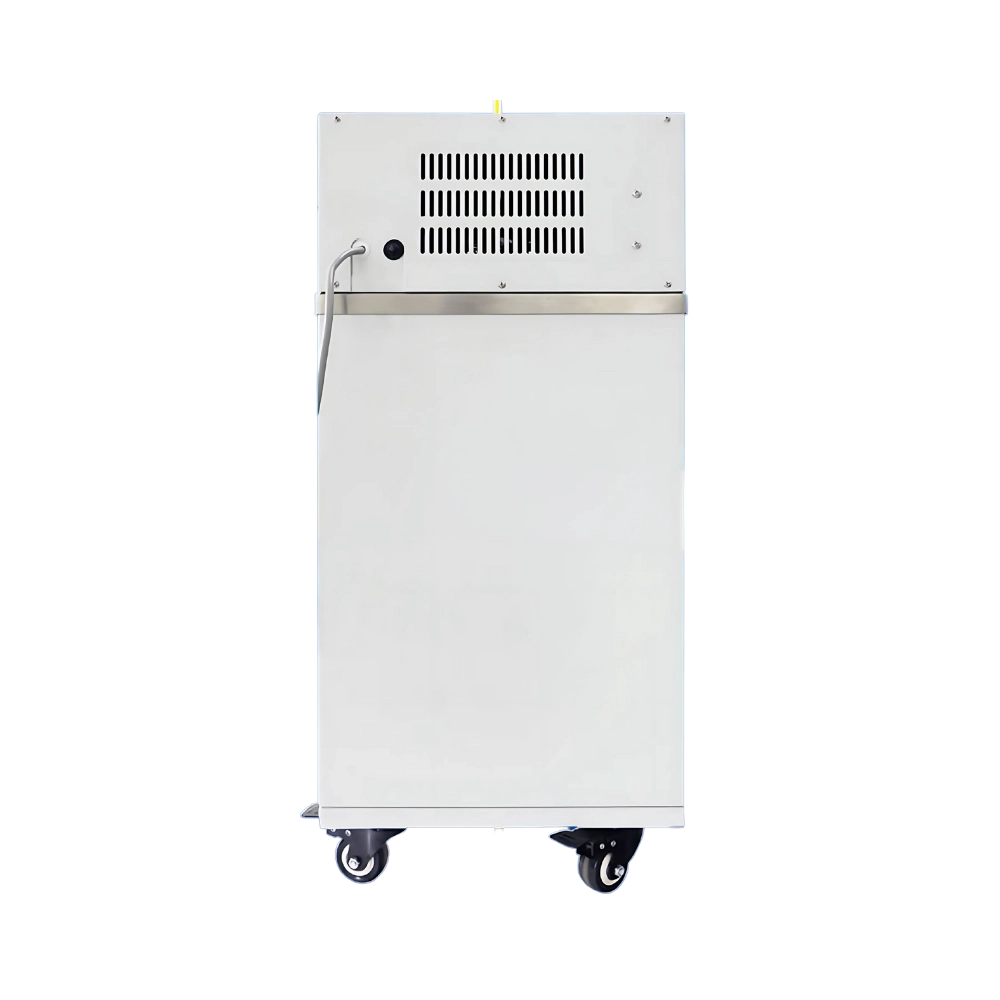

EziLab offers the REID Vapor Pressure Tester EZL-VPT71, a gasoline RVP tester whose stainless steel bath heats from ambient to 90°C on 1600 W and holds temperature within 0.1°C. Two single-opening pressure bombs run side by side, each read on a 0 to 0.1 MPa gauge within 0.4%, so paired samples finish together. A temperature controller and simple interface sit in a 350 by 340 by 750 mm frame weighing 49 kg. Standard kit includes both bombs and gauges, a 0 to 50°C thermometer with 0.1°C divisions, valves, caps, gaskets, sealing rings, and a rubber stopper. Analysts chill and seal a sample in the bomb, immerse it in the bath, and shake it until gauge pressure settles, then record it. Testing two bombs at once halves turnaround on seasonal gasoline checks. Because vapor pressure governs evaporation losses, vapor lock, and cold starting, refiners adjust butane blending against these readings. Refineries and blending terminals confirm summer and winter gasoline grades meet volatility limits, while crude oil producers check volatile crude before transport. Pipeline operators, fuel distributors, and petroleum labs use this vapor pressure tester for release testing. See the Vapor Pressure Testers and REID Vapor Pressure Tester pages for full specifications.
| Temperature Control Range of Bath | Ambient to 90℃ |
|---|---|
| Heating Power of Bath | 1600W |
| Temperature Control Accuracy of Bath | ±0.1℃ |
| Accuracy of Pressure Meter | ±0.4％ |
| Ambient Temperature | -10 to 35℃ |
| Relative Humidity | ≤85% |
| Power Consumption | 1700W |
| Power Supply | AC (220±10%) V, 50Hz |
| Dimension | 350 × 340 ×750 mm |
| Net Weight | 49 kgs |
| Gross Weight | 58 kgs |
Crafted with stainless steel
Equipped with temperature controller
Intuitive interface for easy operation
Dual-pressure bombs enable synchronous testing
Single opening pressure bomb × 2 Sets Pressure gauge (0 MPa to 0.1 MPa) ×2 pieces Mercury thermometer (0℃ to 50 ℃), scale division (0.1 ℃) × 1piece (Suitable for Reid vapor pressure (20 to 75 kPa) Suitable for Reid vapor pressure (20 to 75 kPa) Screw valve with outer screw thread (for sealing air chamber) × 2 pieces Screw cap with inner screw thread (for sealing gasoline Chamber) × 2 pieces Small gasket (outer diameter Φ14.5mm, inner diameter Φ8mm) × 4 pieces Sealing ring for pressure meter (outer diameter Φ18mm, inner diameter Φ6mm) × 4 pieces Rubber stopper ×1 Piece Stopping ring for thermometer × 2 pieces Fuse 10A（φ5×20) × 2 piece Operation manual × 1 piece Quality certificate × 1 piece Product Warranty Card × 1 piece Temperature control device usage manual × 1 piece
REID Vapor Pressure Tester is employed to determine the vapor pressure of gasoline, volatile crude oil, and other petroleum products
